Topology Diagram
Topology Details
DC1-R1/R2 vJunosEVO Spines/DCI
DC1-R3/R4 vJunosEVO SuperSpines
DC1-R5/R6/R7/R8 vJunosEVO Leaf
DC1-R9/R10 vEOS for LACP support
DC2-R1/R2 vJunosEVO Spines/DCI
DC2-R5/R6 vJunosEVO Leaf
DC2-R7/R8 vEOS router Leaf
DC2-R9/R10 vEOS for LACP support
Design Notes
The Network shows 2 x DC’s in an EVPN VXLAN with ERB configuration.
eBGP is used in both the Underlay and Overlay, and relies on BFD for Fast Failover. You can of course specify iBGP in the Overlay if you so wish … but for interoperability with other vendors, may just be easier to keep with eBGP. eBGP in the Overlay uses loopback addressing, hence the underlay needs to advertise these.
Type 5 routes are used for Layer 3 - which are carried in a L3VPN on the Leaf nodes.
The Leaf nodes run ESI (Juniper) or MLAG (Arista) to the switches DC1-R9/R10 & DC2-R9/R10 - these switches are only there as the “hosts” do not support LAG/LACP.
Leaf nodes also act as the default gateway to all hosts - all Leaf Nodes can carry the same default gateway IP/MAC - so test scenario’s such as vmotion are covered.
Data Centre Interconnect (DCI) is covered by DC1-R1/R2 connecting to DC2-R1/R2. However there are limitations in vJunosEVO in this version .. so be careful !
Also you MUST configure “set forwarding-options tunnel-termination” on the vJunosEVO’s … or things won’t work !!!
Excel Spreadsheet

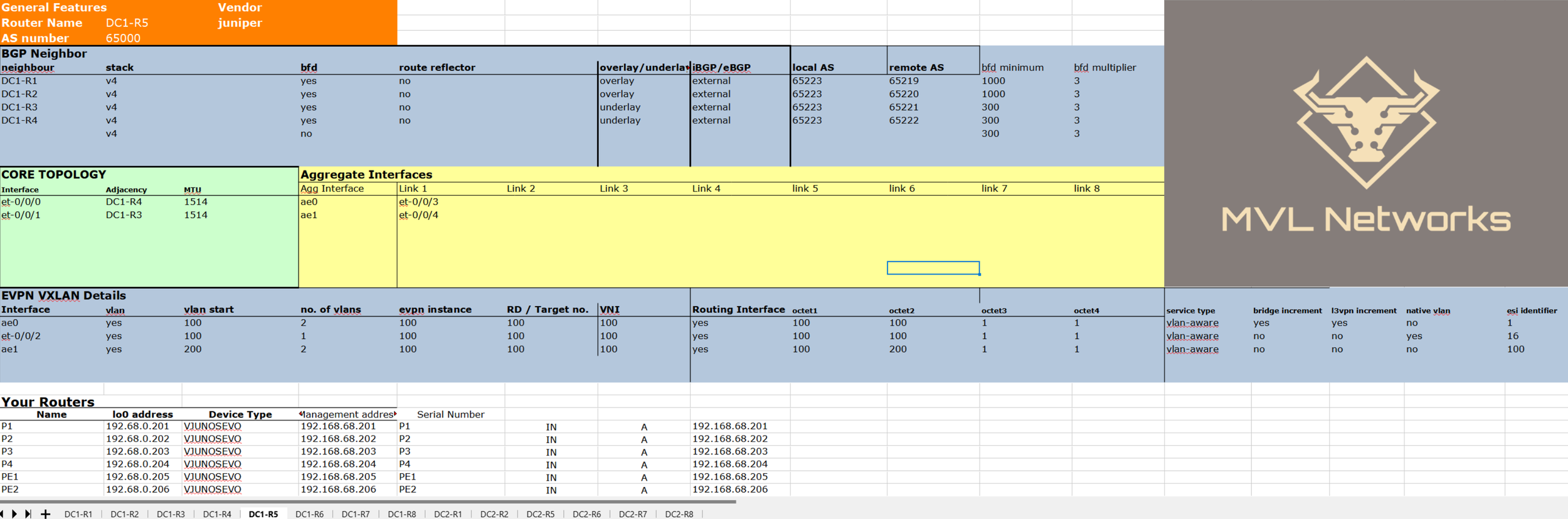

Showing device DC1-R5 - all other devices have their own tab.
Configuration details can be adjusted as needed. In each block if it sees a blank, the script assumes no more devices, interfaces etc and moves on to the next block.
Any block can be as large as you want, just add more lines.
Scaling can be achieved by simply adjusting the no.of vlans required in the EVPN VXLAN Details block.
Methodology
The python script - configbuilder - can run on any compatible system, and this pulls in the entire Excel Workbook.
Each device has it’s own spreadsheet in the tabs, to customise each device.
All cells are then ordered in variables, which are then used as input for the rest of the configbuilder script to create full - and scaled up - configurations for every device.
Currently configbuilder supports Juniper and Arista devices, but can easily be extended to include Cisco ( or any other vendor ) in the future.
Links to the configbuilder script, ansible script and the excel file can be downloaded at the end of the blog. You’ll need to scroll down a bit …
They need to reside in the same directory - or you can change the location of the excel in configbuilder.
The device configuration.script files generated by configbuilder need to reside in the location as specified in the ansible playbook - which should match up with the definition in configbuilder : filename = (routername+".script")
All file locations may need to be altered depending where you put stuff ! I’ll let you do that though ;)
Running the Configbuilder script
$ python3 configbuilder_DC.pyroutername = DC1-R1Vendor = juniperDC1-R1.script writingroutername = DC1-R2Vendor = juniperDC1-R2.script writingroutername = DC1-R3Vendor = juniperDC1-R3.script writingroutername = DC1-R4Vendor = juniperDC1-R4.script writingroutername = DC1-R5Vendor = juniperDC1-R5.script writingroutername = DC1-R6Vendor = juniperDC1-R6.script writingroutername = DC1-R7Vendor = juniperDC1-R7.script writingroutername = DC1-R8Vendor = juniperDC1-R8.script writingroutername = DC2-R1Vendor = juniperDC2-R1.script writingroutername = DC2-R2Vendor = juniperDC2-R2.script writingroutername = DC2-R5Vendor = juniperDC2-R5.script writingroutername = DC2-R6Vendor = juniperDC2-R6.script writingroutername = DC2-R7Vendor = aristaDC2-R7.script writingroutername = DC2-R8Vendor = aristaDC2-R8.script writingScript called in configbuilder for Ansible Playbook to push configurations onto the devices
PLAY [Juniper Configs] ************************************************************************************************************************************TASK [Push config] ************************************************************************************************************************************changed: [DC1-R3]changed: [DC1-R5]changed: [DC1-R4]changed: [DC1-R1]changed: [DC1-R2]changed: [DC1-R6]changed: [DC1-R7]changed: [DC1-R8]changed: [DC2-R1]changed: [DC2-R2]changed: [DC2-R5]changed: [DC2-R6]PLAY [Arista Configs] ************************************************************************************************************************************TASK [enable] ************************************************************************************************************************************ok: [DC2-R8]ok: [DC2-R7]TASK [Push config] ************************************************************************************************************************************changed: [DC2-R8]changed: [DC2-R7]PLAY RECAP ************************************************************************************************************************************DC1-R1 : ok=1 changed=1 unreachable=0 failed=0 skipped=0 rescued=0 ignored=0DC1-R2 : ok=1 changed=1 unreachable=0 failed=0 skipped=0 rescued=0 ignored=0DC1-R3 : ok=1 changed=1 unreachable=0 failed=0 skipped=0 rescued=0 ignored=0DC1-R4 : ok=1 changed=1 unreachable=0 failed=0 skipped=0 rescued=0 ignored=0DC1-R5 : ok=1 changed=1 unreachable=0 failed=0 skipped=0 rescued=0 ignored=0DC1-R6 : ok=1 changed=1 unreachable=0 failed=0 skipped=0 rescued=0 ignored=0DC1-R7 : ok=1 changed=1 unreachable=0 failed=0 skipped=0 rescued=0 ignored=0DC1-R8 : ok=1 changed=1 unreachable=0 failed=0 skipped=0 rescued=0 ignored=0DC2-R1 : ok=1 changed=1 unreachable=0 failed=0 skipped=0 rescued=0 ignored=0DC2-R2 : ok=1 changed=1 unreachable=0 failed=0 skipped=0 rescued=0 ignored=0DC2-R5 : ok=1 changed=1 unreachable=0 failed=0 skipped=0 rescued=0 ignored=0DC2-R6 : ok=1 changed=1 unreachable=0 failed=0 skipped=0 rescued=0 ignored=0DC2-R7 : ok=2 changed=1 unreachable=0 failed=0 skipped=0 rescued=0 ignored=0DC2-R8 : ok=2 changed=1 unreachable=0 failed=0 skipped=0 rescued=0 ignored=0Config Snippits - Juniper
sclarke@DC1-R5# show interfaces ae0
flexible-vlan-tagging;
encapsulation flexible-ethernet-services;
aggregated-ether-options {
lacp {
active;
system-id 00:00:05:00:01:01;
admin-key 1;
}
}
unit 100 {
encapsulation vlan-bridge;
vlan-id 100;
esi {
00:00:05:00:00:00:00:01:00:00;
all-active;
}
}
unit 101 {
encapsulation vlan-bridge;
vlan-id 101;
esi {
00:00:05:00:00:00:00:01:01:00;
all-active;
}
}
sclarke@DC1-R5# show interfaces irb
unit 100 {
family inet {
address 100.100.1.1/24;
}
mac 00:00:5e:64:64:01;
virtual-gateway-v4-mac 00:00:5e:64:64:01;
}
unit 101 {
family inet {
address 100.100.2.1/24;
}
mac 00:00:5e:64:64:02;
virtual-gateway-v4-mac 00:00:5e:64:64:02;
}sclarke@DC1-R5# show routing-instances BD100
instance-type mac-vrf;
protocols {
evpn {
encapsulation vxlan;
default-gateway no-gateway-community;
extended-vni-list 100;
}
}
vtep-source-interface lo0.0;
service-type vlan-aware;
vrf-target target:65000:100;
vlans {
vlan100 {
vlan-id 100;
interface ae0.100;
interface et-0/0/2.100;
l3-interface irb.100;
vxlan {
vni 100;
}
}
}
[edit]
sclarke@DC1-R5# show routing-instances VPN100
instance-type vrf;
routing-options {
multipath;
}
protocols {
evpn {
ip-prefix-routes {
advertise direct-nexthop;
encapsulation vxlan;
vni 10100;
export T5;
}
}
}
interface irb.100;
interface lo0.100;
vrf-target target:65000:10100;
vrf-table-label;
sclarke@DC1-R5# show protocols bgp
group overlay {
type external;
multihop {
no-nexthop-change;
}
local-address 192.68.0.223;
family evpn {
signaling;
}
local-as 65223;
multipath {
multiple-as;
}
neighbor 192.68.0.219 {
peer-as 65219;
bfd-liveness-detection {
minimum-interval 1000;
multiplier 3;
}
}
neighbor 192.68.0.220 {
peer-as 65220;
bfd-liveness-detection {
minimum-interval 1000;
multiplier 3;
}
}
vpn-apply-export;
}
group underlay {
type external;
export my_underlay_export;
local-as 65223;
multipath {
multiple-as;
}
neighbor 10.221.223.1 {
local-address 10.221.223.2;
peer-as 65221;
bfd-liveness-detection {
minimum-interval 300;
multiplier 3;
}
}
neighbor 10.222.223.1 {
local-address 10.222.223.2;
peer-as 65222;
bfd-liveness-detection {
minimum-interval 300;
multiplier 3;
}
}
}Config Snippits - Arista
DC2-R7#show running-config
vlan 100
name IRB
!
vlan 4094
trunk group mlagpeer
!
vrf instance vrf100
!
management api http-commands
no shutdown
!
interface Port-Channel4
switchport trunk allowed vlan 100
switchport mode trunk
mlag 4
!
interface Port-Channel10
switchport mode trunk
switchport trunk group mlagpeer
!
interface Ethernet1
no switchport
ip address 10.230.240.2/30
!
interface Ethernet2
no switchport
ip address 10.229.240.2/30
ip ospf area 0.0.0.0
isis enable test
!
interface Ethernet3
switchport access vlan 100
!
interface Ethernet4
switchport mode trunk
channel-group 4 mode active
!
interface Ethernet5
channel-group 10 mode active
!
interface Vlan100
vrf vrf100
ip address 100.100.1.1/24
!
interface Vlan4094
ip address 10.0.0.1/30
!
interface Vxlan1
vxlan source-interface Loopback0
vxlan udp-port 4789
vxlan vlan 100 vni 100
vxlan vrf vrf100 vni 10100
vxlan vlan 100 flood vtep 192.68.0.229
mlag configuration
domain-id mlag1
local-interface Vlan4094
peer-address 10.0.0.2
peer-link Port-Channel10
!
!
router bgp 65000
router-id 192.68.0.240
maximum-paths 64
neighbor OVERLAY peer group
neighbor OVERLAY local-as 65240 no-prepend replace-as
neighbor OVERLAY update-source Loopback0
neighbor OVERLAY allowas-in 2
neighbor OVERLAY rib-in pre-policy retain all
neighbor OVERLAY ebgp-multihop 5
neighbor OVERLAY send-community extended
neighbor OVERLAY maximum-routes 0
neighbor 10.229.240.1 remote-as 65229
neighbor 10.229.240.1 local-as 65240 no-prepend replace-as
neighbor 10.229.240.1 update-source Ethernet2
neighbor 10.230.240.1 remote-as 65230
neighbor 10.230.240.1 local-as 65240 no-prepend replace-as
neighbor 10.230.240.1 update-source Ethernet1
neighbor 192.68.0.229 peer group OVERLAY
neighbor 192.68.0.229 remote-as 65229
neighbor 192.68.0.230 peer group OVERLAY
neighbor 192.68.0.230 remote-as 65230
neighbor 192.68.0.241 peer group OVERLAY
neighbor 192.68.0.241 remote-as 65241
redistribute connected route-map loopback
redistribute attached-host
!
vlan-aware-bundle bd100
rd 192.68.0.240:100
route-target both 65000:100
redistribute learned
vlan 100
!
address-family evpn
no neighbor 10.229.240.1 activate
no neighbor 10.230.240.1 activate
neighbor 192.68.0.229 activate
neighbor 192.68.0.230 activate
neighbor 192.68.0.241 activate
!
address-family ipv4
neighbor 10.229.240.1 activate
neighbor 10.230.240.1 activate
no neighbor 192.68.0.229 activate
no neighbor 192.68.0.230 activate
no neighbor 192.68.0.241 activate
redistribute connected route-map loopback
!
vrf vrf100
rd 192.68.0.240:10100
route-target import evpn 65000:10100
route-target export evpn 65000:10100
redistribute connected
redistribute attached-host
!
Check BGP - Juniper
sclarke@DC1-R5# run show bgp summary
Threading mode: BGP I/O
Default eBGP mode: advertise - accept, receive - accept
Groups: 2 Peers: 4 Down peers: 0
Table Tot Paths Act Paths Suppressed History Damp State Pending
bgp.evpn.0
670 335 0 0 0 0
inet.0
36 34 0 0 0 0
Peer AS InPkt OutPkt OutQ Flaps Last Up/Dwn State|#Active/Received/Accepted/Damped...
10.221.223.1 65221 743 737 0 0 5:28:58 Establ
inet.0: 17/18/18/0
10.222.223.1 65222 744 738 0 0 5:29:33 Establ
inet.0: 17/18/18/0
192.68.0.219 65219 1243 1140 0 0 5:19:49 Establ
bgp.evpn.0: 109/335/335/0
VPN100.evpn.0: 4/43/43/0
VPN101.evpn.0: 1/5/5/0
BD100.evpn.0: 6/76/76/0
BD101.evpn.0: 0/5/5/0
BD200.evpn.0: 0/0/0/0
__default_evpn__.evpn.0: 0/10/10/0
192.68.0.220 65220 1387 963 0 0 5:28:32 Establ
bgp.evpn.0: 226/335/335/0
VPN100.evpn.0: 39/43/43/0
VPN101.evpn.0: 4/5/5/0
BD100.evpn.0: 70/76/76/0
BD101.evpn.0: 5/5/5/0
BD200.evpn.0: 0/0/0/0
__default_evpn__.evpn.0: 10/10/10/0Check Routes - Underlay - Juniper
sclarke@DC1-R5# run show route protocol bgp active-path
inet.0: 25 destinations, 43 routes (25 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both
10.0.0.0/30 *[BGP/170] 01:05:56, localpref 100
AS path: 65221 65220 65229 65240 I, validation-state: unverified
to 10.222.223.1 via et-0/0/0.0
> to 10.221.223.1 via et-0/0/1.0
10.229.240.0/30 *[BGP/170] 01:04:17, localpref 100, from 10.222.223.1
AS path: 65222 65219 65230 65240 I, validation-state: unverified
to 10.222.223.1 via et-0/0/0.0
> to 10.221.223.1 via et-0/0/1.0
10.229.241.0/30 *[BGP/170] 01:04:17, localpref 100, from 10.222.223.1
AS path: 65222 65219 65230 65241 I, validation-state: unverified
to 10.222.223.1 via et-0/0/0.0
> to 10.221.223.1 via et-0/0/1.0
10.230.240.0/30 *[BGP/170] 01:05:56, localpref 100
AS path: 65221 65220 65229 65240 I, validation-state: unverified
to 10.222.223.1 via et-0/0/0.0
> to 10.221.223.1 via et-0/0/1.0
10.230.241.0/30 *[BGP/170] 01:05:56, localpref 100
AS path: 65221 65220 65229 65241 I, validation-state: unverified
to 10.222.223.1 via et-0/0/0.0
> to 10.221.223.1 via et-0/0/1.0
192.68.0.219/32 *[BGP/170] 01:04:17, localpref 100, from 10.222.223.1
AS path: 65222 65219 I, validation-state: unverified
to 10.222.223.1 via et-0/0/0.0
> to 10.221.223.1 via et-0/0/1.0
192.68.0.220/32 *[BGP/170] 01:12:43, localpref 100
AS path: 65221 65220 I, validation-state: unverified
to 10.222.223.1 via et-0/0/0.0
> to 10.221.223.1 via et-0/0/1.0
192.68.0.221/32 *[BGP/170] 01:13:14, localpref 100
AS path: 65221 I, validation-state: unverified
> to 10.221.223.1 via et-0/0/1.0
192.68.0.222/32 *[BGP/170] 01:13:50, localpref 100
AS path: 65222 I, validation-state: unverified
> to 10.222.223.1 via et-0/0/0.0
192.68.0.224/32 *[BGP/170] 01:13:14, localpref 100
AS path: 65222 65224 I, validation-state: unverified
> to 10.222.223.1 via et-0/0/0.0
to 10.221.223.1 via et-0/0/1.0
192.68.0.225/32 *[BGP/170] 01:13:14, localpref 100
AS path: 65222 65225 I, validation-state: unverified
> to 10.222.223.1 via et-0/0/0.0
to 10.221.223.1 via et-0/0/1.0
192.68.0.226/32 *[BGP/170] 01:13:14, localpref 100
AS path: 65222 65226 I, validation-state: unverified
> to 10.222.223.1 via et-0/0/0.0
to 10.221.223.1 via et-0/0/1.0
192.68.0.229/32 *[BGP/170] 01:05:56, localpref 100, from 10.221.223.1
AS path: 65221 65220 65229 I, validation-state: unverified
> to 10.222.223.1 via et-0/0/0.0
to 10.221.223.1 via et-0/0/1.0
192.68.0.230/32 *[BGP/170] 01:04:17, localpref 100
AS path: 65222 65219 65230 I, validation-state: unverified
> to 10.222.223.1 via et-0/0/0.0
to 10.221.223.1 via et-0/0/1.0
192.68.0.233/32 *[BGP/170] 01:05:56, localpref 100
AS path: 65221 65220 65229 65233 I, validation-state: unverified
to 10.222.223.1 via et-0/0/0.0
> to 10.221.223.1 via et-0/0/1.0
192.68.0.234/32 *[BGP/170] 01:05:31, localpref 100
AS path: 65221 65220 65229 65234 I, validation-state: unverified
to 10.222.223.1 via et-0/0/0.0
> to 10.221.223.1 via et-0/0/1.0
192.68.0.240/32 *[BGP/170] 01:05:56, localpref 100, from 10.221.223.1
AS path: 65221 65220 65229 65240 I, validation-state: unverified
> to 10.222.223.1 via et-0/0/0.0
to 10.221.223.1 via et-0/0/1.0
192.68.0.241/32 *[BGP/170] 01:05:56, localpref 100, from 10.221.223.1
AS path: 65221 65220 65229 65241 I, validation-state: unverified
> to 10.222.223.1 via et-0/0/0.0
to 10.221.223.1 via et-0/0/1.0
Check Routes - Overlay - Juniper - L3 Routes
sclarke@DC1-R5# run show route protocol bgp active-path table VPN100
VPN100.inet.0: 26 destinations, 57 routes (26 active, 0 holddown, 0 hidden)
VPN100.inet6.0: 1 destinations, 1 routes (1 active, 0 holddown, 0 hidden)
VPN100.evpn.0: 48 destinations, 91 routes (48 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both
5:192.68.0.219:152::0::192.68.0.219::32/248
*[BGP/170] 01:08:23, localpref 100, from 192.68.0.219
AS path: 65219 I, validation-state: unverified
to 10.222.223.1 via et-0/0/0.0, Push 631
> to 10.221.223.1 via et-0/0/1.0, Push 631
5:192.68.0.220:152::0::192.68.0.220::32/248
*[BGP/170] 01:17:05, localpref 100, from 192.68.0.220
AS path: 65220 I, validation-state: unverified
to 10.222.223.1 via et-0/0/0.0, Push 631
> to 10.221.223.1 via et-0/0/1.0, Push 631
5:192.68.0.224:54::0::100.100.1.0::24/248
*[BGP/170] 01:16:55, localpref 100, from 192.68.0.220
AS path: 65220 65224 I, validation-state: unverified
to 10.222.223.1 via et-0/0/0.0, Push 631
> to 10.221.223.1 via et-0/0/1.0, Push 631
5:192.68.0.224:54::0::100.100.1.1::32/248
*[BGP/170] 01:16:55, localpref 100, from 192.68.0.220
AS path: 65220 65224 I, validation-state: unverified
> to 10.222.223.1 via et-0/0/0.0, Push 631
to 10.221.223.1 via et-0/0/1.0, Push 631
5:192.68.0.224:54::0::100.100.1.199::32/248
*[BGP/170] 00:46:21, localpref 100, from 192.68.0.220
AS path: 65220 65224 I, validation-state: unverified
> to 10.222.223.1 via et-0/0/0.0, Push 631
to 10.221.223.1 via et-0/0/1.0, Push 631
5:192.68.0.224:54::0::100.100.1.202::32/248
*[BGP/170] 00:46:11, localpref 100, from 192.68.0.219
AS path: 65219 65224 I, validation-state: unverified
to 10.222.223.1 via et-0/0/0.0, Push 631
> to 10.221.223.1 via et-0/0/1.0, Push 631
5:192.68.0.224:54::0::192.68.0.224::32/248
*[BGP/170] 01:16:55, localpref 100, from 192.68.0.220
AS path: 65220 65224 I, validation-state: unverified
> to 10.222.223.1 via et-0/0/0.0, Push 631
to 10.221.223.1 via et-0/0/1.0, Push 631
5:192.68.0.225:53::0::100.100.1.0::24/248
*[BGP/170] 01:16:51, localpref 100, from 192.68.0.220
AS path: 65220 65225 I, validation-state: unverified
to 10.222.223.1 via et-0/0/0.0, Push 631
> to 10.221.223.1 via et-0/0/1.0, Push 631
5:192.68.0.225:53::0::100.100.2.0::24/248
*[BGP/170] 01:16:47, localpref 100, from 192.68.0.220
AS path: 65220 65225 I, validation-state: unverified
to 10.222.223.1 via et-0/0/0.0, Push 631
> to 10.221.223.1 via et-0/0/1.0, Push 631
5:192.68.0.225:53::0::100.100.1.1::32/248
*[BGP/170] 01:16:51, localpref 100, from 192.68.0.220
AS path: 65220 65225 I, validation-state: unverified
> to 10.222.223.1 via et-0/0/0.0, Push 631
to 10.221.223.1 via et-0/0/1.0, Push 631
5:192.68.0.225:53::0::100.100.1.210::32/248
*[BGP/170] 01:15:21, localpref 100, from 192.68.0.220
AS path: 65220 65225 I, validation-state: unverified
> to 10.222.223.1 via et-0/0/0.0, Push 631
to 10.221.223.1 via et-0/0/1.0, Push 631
5:192.68.0.225:53::0::100.100.1.211::32/248
*[BGP/170] 00:46:00, localpref 100, from 192.68.0.220
AS path: 65220 65225 I, validation-state: unverified
> to 10.222.223.1 via et-0/0/0.0, Push 631
to 10.221.223.1 via et-0/0/1.0, Push 631
5:192.68.0.225:53::0::100.100.2.1::32/248
*[BGP/170] 01:16:51, localpref 100, from 192.68.0.220
AS path: 65220 65225 I, validation-state: unverified
> to 10.222.223.1 via et-0/0/0.0, Push 631
to 10.221.223.1 via et-0/0/1.0, Push 631
5:192.68.0.225:53::0::100.100.2.201::32/248
*[BGP/170] 01:15:24, localpref 100, from 192.68.0.220
AS path: 65220 65225 I, validation-state: unverified
to 10.222.223.1 via et-0/0/0.0, Push 631
> to 10.221.223.1 via et-0/0/1.0, Push 631
5:192.68.0.225:53::0::192.68.0.225::32/248
*[BGP/170] 01:16:51, localpref 100, from 192.68.0.220
AS path: 65220 65225 I, validation-state: unverified
> to 10.222.223.1 via et-0/0/0.0, Push 631
to 10.221.223.1 via et-0/0/1.0, Push 631
5:192.68.0.226:51::0::100.100.1.0::24/248
*[BGP/170] 01:16:47, localpref 100, from 192.68.0.220
AS path: 65220 65226 I, validation-state: unverified
to 10.222.223.1 via et-0/0/0.0, Push 631
> to 10.221.223.1 via et-0/0/1.0, Push 631
5:192.68.0.226:51::0::100.100.2.0::24/248
*[BGP/170] 01:16:46, localpref 100, from 192.68.0.220
AS path: 65220 65226 I, validation-state: unverified
to 10.222.223.1 via et-0/0/0.0, Push 631
> to 10.221.223.1 via et-0/0/1.0, Push 631
5:192.68.0.226:51::0::100.100.1.1::32/248
*[BGP/170] 01:16:47, localpref 100, from 192.68.0.220
AS path: 65220 65226 I, validation-state: unverified
> to 10.222.223.1 via et-0/0/0.0, Push 631
to 10.221.223.1 via et-0/0/1.0, Push 631
5:192.68.0.226:51::0::100.100.1.210::32/248
*[BGP/170] 01:15:21, localpref 100, from 192.68.0.220
AS path: 65220 65226 I, validation-state: unverified
> to 10.222.223.1 via et-0/0/0.0, Push 631
to 10.221.223.1 via et-0/0/1.0, Push 631
5:192.68.0.226:51::0::100.100.1.212::32/248
*[BGP/170] 01:15:27, localpref 100, from 192.68.0.220
AS path: 65220 65226 I, validation-state: unverified
> to 10.222.223.1 via et-0/0/0.0, Push 631
to 10.221.223.1 via et-0/0/1.0, Push 631
5:192.68.0.226:51::0::100.100.2.1::32/248
*[BGP/170] 01:16:47, localpref 100, from 192.68.0.220
AS path: 65220 65226 I, validation-state: unverified
> to 10.222.223.1 via et-0/0/0.0, Push 631
to 10.221.223.1 via et-0/0/1.0, Push 631
5:192.68.0.226:51::0::100.100.2.201::32/248
*[BGP/170] 01:15:23, localpref 100, from 192.68.0.220
AS path: 65220 65226 I, validation-state: unverified
to 10.222.223.1 via et-0/0/0.0, Push 631
> to 10.221.223.1 via et-0/0/1.0, Push 631
5:192.68.0.226:51::0::192.68.0.226::32/248
*[BGP/170] 01:16:47, localpref 100, from 192.68.0.220
AS path: 65220 65226 I, validation-state: unverified
> to 10.222.223.1 via et-0/0/0.0, Push 631
to 10.221.223.1 via et-0/0/1.0, Push 631
5:192.68.0.229:53::0::192.68.0.229::32/248
*[BGP/170] 01:10:01, localpref 100, from 192.68.0.220
AS path: 65220 65229 I, validation-state: unverified
> to 10.222.223.1 via et-0/0/0.0, Push 631
to 10.221.223.1 via et-0/0/1.0, Push 631
5:192.68.0.230:51::0::192.68.0.230::32/248
*[BGP/170] 01:08:23, localpref 100, from 192.68.0.219
AS path: 65219 65230 I, validation-state: unverified
> to 10.222.223.1 via et-0/0/0.0, Push 631
to 10.221.223.1 via et-0/0/1.0, Push 631
5:192.68.0.233:51::0::100.100.1.0::24/248
*[BGP/170] 01:09:58, localpref 100, from 192.68.0.220
AS path: 65220 65229 65233 I, validation-state: unverified
> to 10.222.223.1 via et-0/0/0.0, Push 631
to 10.221.223.1 via et-0/0/1.0, Push 631
5:192.68.0.233:51::0::200.200.1.0::24/248
*[BGP/170] 01:09:58, localpref 100, from 192.68.0.220
AS path: 65220 65229 65233 I, validation-state: unverified
> to 10.222.223.1 via et-0/0/0.0, Push 631
to 10.221.223.1 via et-0/0/1.0, Push 631
5:192.68.0.233:51::0::200.200.2.0::24/248
*[BGP/170] 01:09:58, localpref 100, from 192.68.0.220
AS path: 65220 65229 65233 I, validation-state: unverified
> to 10.222.223.1 via et-0/0/0.0, Push 631
to 10.221.223.1 via et-0/0/1.0, Push 631
5:192.68.0.233:51::0::100.100.1.1::32/248
*[BGP/170] 01:09:58, localpref 100, from 192.68.0.220
AS path: 65220 65229 65233 I, validation-state: unverified
to 10.222.223.1 via et-0/0/0.0, Push 631
> to 10.221.223.1 via et-0/0/1.0, Push 631
5:192.68.0.233:51::0::100.100.1.220::32/248
*[BGP/170] 00:45:48, localpref 100, from 192.68.0.220
AS path: 65220 65229 65233 I, validation-state: unverified
> to 10.222.223.1 via et-0/0/0.0, Push 631
to 10.221.223.1 via et-0/0/1.0, Push 631
5:192.68.0.233:51::0::192.68.0.233::32/248
*[BGP/170] 01:09:58, localpref 100, from 192.68.0.220
AS path: 65220 65229 65233 I, validation-state: unverified
> to 10.222.223.1 via et-0/0/0.0, Push 631
to 10.221.223.1 via et-0/0/1.0, Push 631
5:192.68.0.233:51::0::200.200.1.1::32/248
*[BGP/170] 01:09:58, localpref 100, from 192.68.0.220
AS path: 65220 65229 65233 I, validation-state: unverified
to 10.222.223.1 via et-0/0/0.0, Push 631
> to 10.221.223.1 via et-0/0/1.0, Push 631
5:192.68.0.233:51::0::200.200.2.1::32/248
*[BGP/170] 01:09:58, localpref 100, from 192.68.0.220
AS path: 65220 65229 65233 I, validation-state: unverified
to 10.222.223.1 via et-0/0/0.0, Push 631
> to 10.221.223.1 via et-0/0/1.0, Push 631
5:192.68.0.234:53::0::100.100.1.0::24/248
*[BGP/170] 01:09:45, localpref 100, from 192.68.0.220
AS path: 65220 65229 65234 I, validation-state: unverified
> to 10.222.223.1 via et-0/0/0.0, Push 631
to 10.221.223.1 via et-0/0/1.0, Push 631
5:192.68.0.234:53::0::200.200.1.0::24/248
*[BGP/170] 01:09:45, localpref 100, from 192.68.0.220
AS path: 65220 65229 65234 I, validation-state: unverified
> to 10.222.223.1 via et-0/0/0.0, Push 631
to 10.221.223.1 via et-0/0/1.0, Push 631
5:192.68.0.234:53::0::200.200.2.0::24/248
*[BGP/170] 01:09:45, localpref 100, from 192.68.0.220
AS path: 65220 65229 65234 I, validation-state: unverified
> to 10.222.223.1 via et-0/0/0.0, Push 631
to 10.221.223.1 via et-0/0/1.0, Push 631
5:192.68.0.234:53::0::100.100.1.1::32/248
*[BGP/170] 01:09:45, localpref 100, from 192.68.0.220
AS path: 65220 65229 65234 I, validation-state: unverified
to 10.222.223.1 via et-0/0/0.0, Push 631
> to 10.221.223.1 via et-0/0/1.0, Push 631
5:192.68.0.234:53::0::100.100.1.220::32/248
*[BGP/170] 00:45:48, localpref 100, from 192.68.0.219
AS path: 65219 65230 65234 I, validation-state: unverified
> to 10.222.223.1 via et-0/0/0.0, Push 631
to 10.221.223.1 via et-0/0/1.0, Push 631
5:192.68.0.234:53::0::192.68.0.234::32/248
*[BGP/170] 01:09:45, localpref 100, from 192.68.0.220
AS path: 65220 65229 65234 I, validation-state: unverified
> to 10.222.223.1 via et-0/0/0.0, Push 631
to 10.221.223.1 via et-0/0/1.0, Push 631
5:192.68.0.234:53::0::200.200.1.1::32/248
*[BGP/170] 01:09:45, localpref 100, from 192.68.0.220
AS path: 65220 65229 65234 I, validation-state: unverified
to 10.222.223.1 via et-0/0/0.0, Push 631
> to 10.221.223.1 via et-0/0/1.0, Push 631
5:192.68.0.234:53::0::200.200.2.1::32/248
*[BGP/170] 01:09:45, localpref 100, from 192.68.0.220
AS path: 65220 65229 65234 I, validation-state: unverified
to 10.222.223.1 via et-0/0/0.0, Push 631
> to 10.221.223.1 via et-0/0/1.0, Push 631
5:192.68.0.240:10100::0::100.100.1.0::24/248
*[BGP/170] 01:10:01, localpref 100, from 192.68.0.220
AS path: 65220 65229 65240 I, validation-state: unverified
to 10.222.223.1 via et-0/0/0.0, Push 631
> to 10.221.223.1 via et-0/0/1.0, Push 631
5:192.68.0.241:10100::0::200.200.2.0::24/248
*[BGP/170] 01:10:01, localpref 100, from 192.68.0.220
AS path: 65220 65229 65241 I, validation-state: unverified
to 10.222.223.1 via et-0/0/0.0, Push 631
> to 10.221.223.1 via et-0/0/1.0, Push 631
Check Routes - Overlay - Juniper - L2 Routes
sclarke@DC1-R5# run show route protocol bgp active-path table BD100
BD100.evpn.0: 85 destinations, 161 routes (85 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both
1:192.68.0.224:0::0500000000010000::FFFF:FFFF/192 AD/ESI
*[BGP/170] 01:09:15, localpref 100, from 192.68.0.220
AS path: 65220 65224 I, validation-state: unverified
to 10.222.223.1 via et-0/0/0.0
> to 10.221.223.1 via et-0/0/1.0
1:192.68.0.224:51::0500000000010000::0/192 AD/EVI
*[BGP/170] 01:09:16, localpref 100, from 192.68.0.220
AS path: 65220 65224 I, validation-state: unverified
to 10.222.223.1 via et-0/0/0.0
> to 10.221.223.1 via et-0/0/1.0
1:192.68.0.225:0::0500000000020000::FFFF:FFFF/192 AD/ESI
*[BGP/170] 01:21:41, localpref 100, from 192.68.0.220
AS path: 65220 65225 I, validation-state: unverified
to 10.222.223.1 via et-0/0/0.0
> to 10.221.223.1 via et-0/0/1.0
1:192.68.0.225:0::0500000000020100::FFFF:FFFF/192 AD/ESI
*[BGP/170] 01:21:41, localpref 100, from 192.68.0.220
AS path: 65220 65225 I, validation-state: unverified
to 10.222.223.1 via et-0/0/0.0
> to 10.221.223.1 via et-0/0/1.0
1:192.68.0.225:51::0500000000020000::0/192 AD/EVI
*[BGP/170] 01:21:42, localpref 100, from 192.68.0.220
AS path: 65220 65225 I, validation-state: unverified
to 10.222.223.1 via et-0/0/0.0
> to 10.221.223.1 via et-0/0/1.0
1:192.68.0.225:51::0500000000020100::0/192 AD/EVI
*[BGP/170] 01:21:42, localpref 100, from 192.68.0.220
AS path: 65220 65225 I, validation-state: unverified
to 10.222.223.1 via et-0/0/0.0
> to 10.221.223.1 via et-0/0/1.0
1:192.68.0.226:0::0500000000020000::FFFF:FFFF/192 AD/ESI
*[BGP/170] 01:21:36, localpref 100, from 192.68.0.220
AS path: 65220 65226 I, validation-state: unverified
to 10.222.223.1 via et-0/0/0.0
> to 10.221.223.1 via et-0/0/1.0
1:192.68.0.226:0::0500000000020100::FFFF:FFFF/192 AD/ESI
*[BGP/170] 01:21:36, localpref 100, from 192.68.0.220
AS path: 65220 65226 I, validation-state: unverified
to 10.222.223.1 via et-0/0/0.0
> to 10.221.223.1 via et-0/0/1.0
1:192.68.0.226:54::0500000000020000::0/192 AD/EVI
*[BGP/170] 01:21:37, localpref 100, from 192.68.0.220
AS path: 65220 65226 I, validation-state: unverified
to 10.222.223.1 via et-0/0/0.0
> to 10.221.223.1 via et-0/0/1.0
1:192.68.0.226:54::0500000000020100::0/192 AD/EVI
*[BGP/170] 01:21:37, localpref 100, from 192.68.0.220
AS path: 65220 65226 I, validation-state: unverified
to 10.222.223.1 via et-0/0/0.0
> to 10.221.223.1 via et-0/0/1.0
1:192.68.0.233:0::0500000000030000::FFFF:FFFF/192 AD/ESI
*[BGP/170] 01:14:50, localpref 100, from 192.68.0.220
AS path: 65220 65229 65233 I, validation-state: unverified
> to 10.222.223.1 via et-0/0/0.0
to 10.221.223.1 via et-0/0/1.0
1:192.68.0.233:0::0500000000030100::FFFF:FFFF/192 AD/ESI
*[BGP/170] 01:14:51, localpref 100, from 192.68.0.220
AS path: 65220 65229 65233 I, validation-state: unverified
> to 10.222.223.1 via et-0/0/0.0
to 10.221.223.1 via et-0/0/1.0
1:192.68.0.233:54::0500000000030000::0/192 AD/EVI
*[BGP/170] 01:14:51, localpref 100, from 192.68.0.220
AS path: 65220 65229 65233 I, validation-state: unverified
> to 10.222.223.1 via et-0/0/0.0
to 10.221.223.1 via et-0/0/1.0
1:192.68.0.233:54::0500000000030100::0/192 AD/EVI
*[BGP/170] 01:14:52, localpref 100, from 192.68.0.220
AS path: 65220 65229 65233 I, validation-state: unverified
> to 10.222.223.1 via et-0/0/0.0
to 10.221.223.1 via et-0/0/1.0
1:192.68.0.234:0::0500000000030000::FFFF:FFFF/192 AD/ESI
*[BGP/170] 01:14:45, localpref 100, from 192.68.0.220
AS path: 65220 65229 65234 I, validation-state: unverified
> to 10.222.223.1 via et-0/0/0.0
to 10.221.223.1 via et-0/0/1.0
1:192.68.0.234:0::0500000000030100::FFFF:FFFF/192 AD/ESI
*[BGP/170] 01:14:45, localpref 100, from 192.68.0.220
AS path: 65220 65229 65234 I, validation-state: unverified
> to 10.222.223.1 via et-0/0/0.0
to 10.221.223.1 via et-0/0/1.0
1:192.68.0.234:51::0500000000030000::0/192 AD/EVI
*[BGP/170] 01:14:46, localpref 100, from 192.68.0.220
AS path: 65220 65229 65234 I, validation-state: unverified
> to 10.222.223.1 via et-0/0/0.0
to 10.221.223.1 via et-0/0/1.0
1:192.68.0.234:51::0500000000030100::0/192 AD/EVI
*[BGP/170] 01:14:46, localpref 100, from 192.68.0.220
AS path: 65220 65229 65234 I, validation-state: unverified
> to 10.222.223.1 via et-0/0/0.0
to 10.221.223.1 via et-0/0/1.0
2:192.68.0.224:51::100::00:00:5e:64:64:01/304 MAC/IP
*[BGP/170] 01:22:00, localpref 100, from 192.68.0.220
AS path: 65220 65224 I, validation-state: unverified
to 10.222.223.1 via et-0/0/0.0, Push 6
> to 10.221.223.1 via et-0/0/1.0, Push 6
2:192.68.0.224:51::100::00:50:79:66:68:2f/304 MAC/IP
*[BGP/170] 00:51:16, localpref 100, from 192.68.0.219
AS path: 65219 65224 I, validation-state: unverified
to 10.222.223.1 via et-0/0/0.0, Push 6
> to 10.221.223.1 via et-0/0/1.0, Push 6
2:192.68.0.224:51::100::50:00:00:22:00:03/304 MAC/IP
*[BGP/170] 01:20:21, localpref 100, from 192.68.0.220
AS path: 65220 65224 I, validation-state: unverified
> to 10.222.223.1 via et-0/0/0.0, Push 6
to 10.221.223.1 via et-0/0/1.0, Push 6
2:192.68.0.224:51::100::50:00:00:44:00:01/304 MAC/IP
*[BGP/170] 00:51:26, localpref 100, from 192.68.0.219
AS path: 65219 65224 I, validation-state: unverified
> to 10.222.223.1 via et-0/0/0.0, Push 6
to 10.221.223.1 via et-0/0/1.0, Push 6
2:192.68.0.225:51::100::00:00:5e:64:64:01/304 MAC/IP
*[BGP/170] 01:21:56, localpref 100, from 192.68.0.220
AS path: 65220 65225 I, validation-state: unverified
to 10.222.223.1 via et-0/0/0.0, Push 6
> to 10.221.223.1 via et-0/0/1.0, Push 6
2:192.68.0.225:51::100::00:50:79:66:68:28/304 MAC/IP
*[BGP/170] 01:20:26, localpref 100, from 192.68.0.220
AS path: 65220 65225 I, validation-state: unverified
to 10.222.223.1 via et-0/0/0.0, Push 6
> to 10.221.223.1 via et-0/0/1.0, Push 6
2:192.68.0.225:51::100::00:50:79:66:68:2b/304 MAC/IP
*[BGP/170] 00:51:05, localpref 100, from 192.68.0.220
AS path: 65220 65225 I, validation-state: unverified
to 10.222.223.1 via et-0/0/0.0, Push 6
> to 10.221.223.1 via et-0/0/1.0, Push 6
2:192.68.0.225:51::100::50:00:00:21:00:03/304 MAC/IP
*[BGP/170] 01:21:02, localpref 100, from 192.68.0.220
AS path: 65220 65225 I, validation-state: unverified
> to 10.222.223.1 via et-0/0/0.0, Push 6
to 10.221.223.1 via et-0/0/1.0, Push 6
2:192.68.0.225:51::101::00:00:5e:64:64:02/304 MAC/IP
*[BGP/170] 01:21:52, localpref 100, from 192.68.0.220
AS path: 65220 65225 I, validation-state: unverified
to 10.222.223.1 via et-0/0/0.0, Push 6
> to 10.221.223.1 via et-0/0/1.0, Push 6
2:192.68.0.225:51::101::00:50:79:66:68:2e/304 MAC/IP
*[BGP/170] 01:20:29, localpref 100, from 192.68.0.220
AS path: 65220 65225 I, validation-state: unverified
to 10.222.223.1 via et-0/0/0.0, Push 6
> to 10.221.223.1 via et-0/0/1.0, Push 6
2:192.68.0.226:54::100::00:00:5e:64:64:01/304 MAC/IP
*[BGP/170] 01:21:52, localpref 100, from 192.68.0.220
AS path: 65220 65226 I, validation-state: unverified
to 10.222.223.1 via et-0/0/0.0, Push 6
> to 10.221.223.1 via et-0/0/1.0, Push 6
2:192.68.0.226:54::100::00:50:79:66:68:28/304 MAC/IP
*[BGP/170] 01:20:26, localpref 100, from 192.68.0.220
AS path: 65220 65226 I, validation-state: unverified
to 10.222.223.1 via et-0/0/0.0, Push 6
> to 10.221.223.1 via et-0/0/1.0, Push 6
2:192.68.0.226:54::100::00:50:79:66:68:30/304 MAC/IP
*[BGP/170] 01:20:32, localpref 100, from 192.68.0.220
AS path: 65220 65226 I, validation-state: unverified
> to 10.222.223.1 via et-0/0/0.0, Push 6
to 10.221.223.1 via et-0/0/1.0, Push 6
2:192.68.0.226:54::100::50:00:00:20:00:03/304 MAC/IP
*[BGP/170] 01:21:05, localpref 100, from 192.68.0.220
AS path: 65220 65226 I, validation-state: unverified
> to 10.222.223.1 via et-0/0/0.0, Push 6
to 10.221.223.1 via et-0/0/1.0, Push 6
2:192.68.0.226:54::101::00:00:5e:64:64:02/304 MAC/IP
*[BGP/170] 01:21:51, localpref 100, from 192.68.0.220
AS path: 65220 65226 I, validation-state: unverified
to 10.222.223.1 via et-0/0/0.0, Push 6
> to 10.221.223.1 via et-0/0/1.0, Push 6
2:192.68.0.226:54::101::00:50:79:66:68:2e/304 MAC/IP
*[BGP/170] 01:20:28, localpref 100, from 192.68.0.220
AS path: 65220 65226 I, validation-state: unverified
to 10.222.223.1 via et-0/0/0.0, Push 6
> to 10.221.223.1 via et-0/0/1.0, Push 6
2:192.68.0.233:54::100::00:00:5e:64:64:01/304 MAC/IP
*[BGP/170] 01:15:03, localpref 100, from 192.68.0.220
AS path: 65220 65229 65233 I, validation-state: unverified
> to 10.222.223.1 via et-0/0/0.0, Push 6
to 10.221.223.1 via et-0/0/1.0, Push 6
2:192.68.0.233:54::100::00:50:79:66:68:37/304 MAC/IP
*[BGP/170] 00:50:54, localpref 100, from 192.68.0.219
AS path: 65219 65230 65233 I, validation-state: unverified
to 10.222.223.1 via et-0/0/0.0, Push 6
> to 10.221.223.1 via et-0/0/1.0, Push 6
2:192.68.0.233:54::100::50:00:00:18:00:04/304 MAC/IP
*[BGP/170] 01:13:48, localpref 100, from 192.68.0.220
AS path: 65220 65229 65233 I, validation-state: unverified
> to 10.222.223.1 via et-0/0/0.0, Push 6
to 10.221.223.1 via et-0/0/1.0, Push 6
2:192.68.0.233:54::101::00:00:5e:c8:c8:02/304 MAC/IP
*[BGP/170] 01:15:03, localpref 100, from 192.68.0.220
AS path: 65220 65229 65233 I, validation-state: unverified
> to 10.222.223.1 via et-0/0/0.0, Push 6
to 10.221.223.1 via et-0/0/1.0, Push 6
2:192.68.0.234:51::100::00:00:5e:64:64:01/304 MAC/IP
*[BGP/170] 01:14:50, localpref 100, from 192.68.0.220
AS path: 65220 65229 65234 I, validation-state: unverified
> to 10.222.223.1 via et-0/0/0.0, Push 6
to 10.221.223.1 via et-0/0/1.0, Push 6
2:192.68.0.234:51::100::00:50:79:66:68:37/304 MAC/IP
*[BGP/170] 00:50:53, localpref 100, from 192.68.0.220
AS path: 65220 65229 65234 I, validation-state: unverified
to 10.222.223.1 via et-0/0/0.0, Push 6
> to 10.221.223.1 via et-0/0/1.0, Push 6
2:192.68.0.234:51::100::50:00:00:17:00:04/304 MAC/IP
*[BGP/170] 01:12:54, localpref 100, from 192.68.0.219
AS path: 65219 65230 65234 I, validation-state: unverified
to 10.222.223.1 via et-0/0/0.0, Push 6
> to 10.221.223.1 via et-0/0/1.0, Push 6
2:192.68.0.234:51::101::00:00:5e:c8:c8:02/304 MAC/IP
*[BGP/170] 01:14:50, localpref 100, from 192.68.0.220
AS path: 65220 65229 65234 I, validation-state: unverified
> to 10.222.223.1 via et-0/0/0.0, Push 6
to 10.221.223.1 via et-0/0/1.0, Push 6
2:192.68.0.240:100::100::00:50:79:66:68:39/304 MAC/IP
*[BGP/170] 00:05:00, localpref 100, from 192.68.0.220
AS path: 65220 65229 65240 I, validation-state: unverified
to 10.222.223.1 via et-0/0/0.0, Push 6
> to 10.221.223.1 via et-0/0/1.0, Push 6
2:192.68.0.241:100::100::00:50:79:66:68:39/304 MAC/IP
*[BGP/170] 00:05:00, localpref 100, from 192.68.0.220
AS path: 65220 65229 65241 I, validation-state: unverified
to 10.222.223.1 via et-0/0/0.0, Push 6
> to 10.221.223.1 via et-0/0/1.0, Push 6
2:192.68.0.224:51::100::00:00:5e:64:64:01::100.100.1.1/304 MAC/IP
*[BGP/170] 01:22:00, localpref 100, from 192.68.0.220
AS path: 65220 65224 I, validation-state: unverified
> to 10.222.223.1 via et-0/0/0.0, Push 6
to 10.221.223.1 via et-0/0/1.0, Push 6
2:192.68.0.224:51::100::00:50:79:66:68:2f::100.100.1.202/304 MAC/IP
*[BGP/170] 00:51:16, localpref 100, from 192.68.0.219
AS path: 65219 65224 I, validation-state: unverified
to 10.222.223.1 via et-0/0/0.0, Push 6
> to 10.221.223.1 via et-0/0/1.0, Push 6
2:192.68.0.224:51::100::50:00:00:44:00:01::100.100.1.199/304 MAC/IP
*[BGP/170] 00:41:26, localpref 100, from 192.68.0.219
AS path: 65219 65224 I, validation-state: unverified
to 10.222.223.1 via et-0/0/0.0, Push 6
> to 10.221.223.1 via et-0/0/1.0, Push 6
2:192.68.0.225:51::100::00:00:5e:64:64:01::100.100.1.1/304 MAC/IP
*[BGP/170] 01:21:56, localpref 100, from 192.68.0.220
AS path: 65220 65225 I, validation-state: unverified
> to 10.222.223.1 via et-0/0/0.0, Push 6
to 10.221.223.1 via et-0/0/1.0, Push 6
2:192.68.0.225:51::100::00:50:79:66:68:28::100.100.1.210/304 MAC/IP
*[BGP/170] 01:10:26, localpref 100, from 192.68.0.220
AS path: 65220 65225 I, validation-state: unverified
> to 10.222.223.1 via et-0/0/0.0, Push 6
to 10.221.223.1 via et-0/0/1.0, Push 6
2:192.68.0.225:51::100::00:50:79:66:68:2b::100.100.1.211/304 MAC/IP
*[BGP/170] 00:51:05, localpref 100, from 192.68.0.220
AS path: 65220 65225 I, validation-state: unverified
> to 10.222.223.1 via et-0/0/0.0, Push 6
to 10.221.223.1 via et-0/0/1.0, Push 6
2:192.68.0.225:51::101::00:00:5e:64:64:02::100.100.2.1/304 MAC/IP
*[BGP/170] 01:21:52, localpref 100, from 192.68.0.220
AS path: 65220 65225 I, validation-state: unverified
> to 10.222.223.1 via et-0/0/0.0, Push 6
to 10.221.223.1 via et-0/0/1.0, Push 6
2:192.68.0.225:51::101::00:50:79:66:68:2e::100.100.2.201/304 MAC/IP
*[BGP/170] 01:20:29, localpref 100, from 192.68.0.220
AS path: 65220 65225 I, validation-state: unverified
to 10.222.223.1 via et-0/0/0.0, Push 6
> to 10.221.223.1 via et-0/0/1.0, Push 6
2:192.68.0.226:54::100::00:00:5e:64:64:01::100.100.1.1/304 MAC/IP
*[BGP/170] 01:21:52, localpref 100, from 192.68.0.220
AS path: 65220 65226 I, validation-state: unverified
> to 10.222.223.1 via et-0/0/0.0, Push 6
to 10.221.223.1 via et-0/0/1.0, Push 6
2:192.68.0.226:54::100::00:50:79:66:68:28::100.100.1.210/304 MAC/IP
*[BGP/170] 01:00:21, localpref 100, from 192.68.0.220
AS path: 65220 65226 I, validation-state: unverified
> to 10.222.223.1 via et-0/0/0.0, Push 6
to 10.221.223.1 via et-0/0/1.0, Push 6
2:192.68.0.226:54::100::00:50:79:66:68:30::100.100.1.212/304 MAC/IP
*[BGP/170] 01:20:32, localpref 100, from 192.68.0.220
AS path: 65220 65226 I, validation-state: unverified
to 10.222.223.1 via et-0/0/0.0, Push 6
> to 10.221.223.1 via et-0/0/1.0, Push 6
2:192.68.0.226:54::101::00:00:5e:64:64:02::100.100.2.1/304 MAC/IP
*[BGP/170] 01:21:51, localpref 100, from 192.68.0.220
AS path: 65220 65226 I, validation-state: unverified
> to 10.222.223.1 via et-0/0/0.0, Push 6
to 10.221.223.1 via et-0/0/1.0, Push 6
2:192.68.0.226:54::101::00:50:79:66:68:2e::100.100.2.201/304 MAC/IP
*[BGP/170] 01:20:28, localpref 100, from 192.68.0.220
AS path: 65220 65226 I, validation-state: unverified
to 10.222.223.1 via et-0/0/0.0, Push 6
> to 10.221.223.1 via et-0/0/1.0, Push 6
2:192.68.0.233:54::100::00:00:5e:64:64:01::100.100.1.1/304 MAC/IP
*[BGP/170] 01:15:03, localpref 100, from 192.68.0.220
AS path: 65220 65229 65233 I, validation-state: unverified
to 10.222.223.1 via et-0/0/0.0, Push 6
> to 10.221.223.1 via et-0/0/1.0, Push 6
2:192.68.0.233:54::100::00:00:5e:64:64:01::200.200.1.1/304 MAC/IP
*[BGP/170] 01:15:03, localpref 100, from 192.68.0.220
AS path: 65220 65229 65233 I, validation-state: unverified
to 10.222.223.1 via et-0/0/0.0, Push 6
> to 10.221.223.1 via et-0/0/1.0, Push 6
2:192.68.0.233:54::100::00:50:79:66:68:37::100.100.1.220/304 MAC/IP
*[BGP/170] 00:50:53, localpref 100, from 192.68.0.220
AS path: 65220 65229 65233 I, validation-state: unverified
to 10.222.223.1 via et-0/0/0.0, Push 6
> to 10.221.223.1 via et-0/0/1.0, Push 6
2:192.68.0.233:54::101::00:00:5e:c8:c8:02::200.200.2.1/304 MAC/IP
*[BGP/170] 01:15:03, localpref 100, from 192.68.0.220
AS path: 65220 65229 65233 I, validation-state: unverified
to 10.222.223.1 via et-0/0/0.0, Push 6
> to 10.221.223.1 via et-0/0/1.0, Push 6
2:192.68.0.234:51::100::00:00:5e:64:64:01::100.100.1.1/304 MAC/IP
*[BGP/170] 01:14:50, localpref 100, from 192.68.0.220
AS path: 65220 65229 65234 I, validation-state: unverified
to 10.222.223.1 via et-0/0/0.0, Push 6
> to 10.221.223.1 via et-0/0/1.0, Push 6
2:192.68.0.234:51::100::00:00:5e:64:64:01::200.200.1.1/304 MAC/IP
*[BGP/170] 01:14:50, localpref 100, from 192.68.0.220
AS path: 65220 65229 65234 I, validation-state: unverified
to 10.222.223.1 via et-0/0/0.0, Push 6
> to 10.221.223.1 via et-0/0/1.0, Push 6
2:192.68.0.234:51::100::00:50:79:66:68:37::100.100.1.220/304 MAC/IP
*[BGP/170] 00:50:53, localpref 100, from 192.68.0.220
AS path: 65220 65229 65234 I, validation-state: unverified
to 10.222.223.1 via et-0/0/0.0, Push 6
> to 10.221.223.1 via et-0/0/1.0, Push 6
2:192.68.0.234:51::101::00:00:5e:c8:c8:02::200.200.2.1/304 MAC/IP
*[BGP/170] 01:14:50, localpref 100, from 192.68.0.220
AS path: 65220 65229 65234 I, validation-state: unverified
to 10.222.223.1 via et-0/0/0.0, Push 6
> to 10.221.223.1 via et-0/0/1.0, Push 6
3:192.68.0.224:51::100::192.68.0.224/248 IM
*[BGP/170] 01:22:00, localpref 100, from 192.68.0.220
AS path: 65220 65224 I, validation-state: unverified
> to 10.222.223.1 via et-0/0/0.0
to 10.221.223.1 via et-0/0/1.0
3:192.68.0.225:51::100::192.68.0.225/248 IM
*[BGP/170] 01:21:56, localpref 100, from 192.68.0.220
AS path: 65220 65225 I, validation-state: unverified
> to 10.222.223.1 via et-0/0/0.0
to 10.221.223.1 via et-0/0/1.0
3:192.68.0.225:51::101::192.68.0.225/248 IM
*[BGP/170] 01:21:56, localpref 100, from 192.68.0.220
AS path: 65220 65225 I, validation-state: unverified
> to 10.222.223.1 via et-0/0/0.0
to 10.221.223.1 via et-0/0/1.0
3:192.68.0.226:54::100::192.68.0.226/248 IM
*[BGP/170] 01:21:52, localpref 100, from 192.68.0.220
AS path: 65220 65226 I, validation-state: unverified
> to 10.222.223.1 via et-0/0/0.0
to 10.221.223.1 via et-0/0/1.0
3:192.68.0.226:54::101::192.68.0.226/248 IM
*[BGP/170] 01:21:52, localpref 100, from 192.68.0.220
AS path: 65220 65226 I, validation-state: unverified
> to 10.222.223.1 via et-0/0/0.0
to 10.221.223.1 via et-0/0/1.0
3:192.68.0.233:54::100::192.68.0.233/248 IM
*[BGP/170] 01:15:03, localpref 100, from 192.68.0.220
AS path: 65220 65229 65233 I, validation-state: unverified
> to 10.222.223.1 via et-0/0/0.0
to 10.221.223.1 via et-0/0/1.0
3:192.68.0.233:54::101::192.68.0.233/248 IM
*[BGP/170] 01:15:03, localpref 100, from 192.68.0.220
AS path: 65220 65229 65233 I, validation-state: unverified
> to 10.222.223.1 via et-0/0/0.0
to 10.221.223.1 via et-0/0/1.0
3:192.68.0.234:51::100::192.68.0.234/248 IM
*[BGP/170] 01:14:50, localpref 100, from 192.68.0.220
AS path: 65220 65229 65234 I, validation-state: unverified
> to 10.222.223.1 via et-0/0/0.0
to 10.221.223.1 via et-0/0/1.0
3:192.68.0.234:51::101::192.68.0.234/248 IM
*[BGP/170] 01:14:50, localpref 100, from 192.68.0.220
AS path: 65220 65229 65234 I, validation-state: unverified
> to 10.222.223.1 via et-0/0/0.0
to 10.221.223.1 via et-0/0/1.0
3:192.68.0.240:100::100::192.68.0.240/248 IM
*[BGP/170] 01:15:06, localpref 100, from 192.68.0.220
AS path: 65220 65229 65240 I, validation-state: unverified
> to 10.222.223.1 via et-0/0/0.0
to 10.221.223.1 via et-0/0/1.0
3:192.68.0.241:100::100::192.68.0.241/248 IM
*[BGP/170] 01:15:06, localpref 100, from 192.68.0.220
AS path: 65220 65229 65241 I, validation-state: unverified
> to 10.222.223.1 via et-0/0/0.0
to 10.221.223.1 via et-0/0/1.0
sclarke@DC1-R5# run show mac-vrf forwarding mac-ip-tableMAC IP flags (S - Static, D - Dynamic, L - Local , R - Remote, Lp - Local Proxy, Rp - Remote Proxy, K - Kernel, RT - Dest Route, (N)AD - (Not) Advt to remote, RE - Re-ARP/ND, RO - Router, OV - Override, Ur - Unresolved, RTS - Dest Route Skipped, RGw - Remote Gateway, GBP - Group Based Policy, RTF - Dest Route Forced) Routing instance : BD100 Bridging domain : vlan100 IP MAC Flags GBP Logical Active address address Tag Interface source 100.100.1.1 00:00:5e:64:64:01 S,K irb.100 100.100.1.210 00:50:79:66:68:28 DR,K,RTS esi.81052 00:00:05:00:00:00:00:02:00:00 100.100.1.201 00:50:79:66:68:2a DL,K,RT,AD et-0/0/2.100 100.100.1.211 00:50:79:66:68:2b DR,K,RTS vtep-56.32773 192.68.0.225 100.100.1.202 00:50:79:66:68:2f DR,K,RTS vtep-56.32772 192.68.0.224 100.100.1.212 00:50:79:66:68:30 DR,K,RTS vtep-56.32774 192.68.0.226 100.100.1.220 00:50:79:66:68:37 DR,K,RTS esi.81067 00:00:05:00:00:00:00:03:00:00 100.100.1.199 50:00:00:44:00:01 DLR,K,RT,AD ae0.100Check BGP - Arista
DC2-R7>show bgp summaryBGP summary information for VRF defaultRouter identifier 192.68.0.240, local AS number 65000Neighbor AS Session State AFI/SAFI AFI/SAFI State NLRI Rcd NLRI Acc------------ ----------- ------------- ----------------------- -------------- ---------- ----------10.229.240.1 65229 Established IPv4 Unicast Negotiated 14 1410.230.240.1 65230 Established IPv4 Unicast Negotiated 14 14192.68.0.229 65229 Established L2VPN EVPN Negotiated 362 362192.68.0.230 65230 Established L2VPN EVPN Negotiated 362 362192.68.0.241 65241 Established L2VPN EVPN Negotiated 362 362Check Routes - Underlay - Arista
DC2-R7>show ip route bgp
VRF: default
Codes: C - connected, S - static, K - kernel,
O - OSPF, IA - OSPF inter area, E1 - OSPF external type 1,
E2 - OSPF external type 2, N1 - OSPF NSSA external type 1,
N2 - OSPF NSSA external type2, B - Other BGP Routes,
B I - iBGP, B E - eBGP, R - RIP, I L1 - IS-IS level 1,
I L2 - IS-IS level 2, O3 - OSPFv3, A B - BGP Aggregate,
A O - OSPF Summary, NG - Nexthop Group Static Route,
V - VXLAN Control Service, M - Martian,
DH - DHCP client installed default route,
DP - Dynamic Policy Route, L - VRF Leaked,
G - gRIBI, RC - Route Cache Route,
CL - CBF Leaked Route
B E 10.229.241.0/30 [200/0] via 10.230.240.1, Ethernet1
B E 10.230.241.0/30 [200/0] via 10.229.240.1, Ethernet2
B E 192.68.0.219/32 [200/0] via 10.230.240.1, Ethernet1
B E 192.68.0.220/32 [200/0] via 10.229.240.1, Ethernet2
B E 192.68.0.221/32 [200/0] via 10.230.240.1, Ethernet1
via 10.229.240.1, Ethernet2
B E 192.68.0.222/32 [200/0] via 10.230.240.1, Ethernet1
via 10.229.240.1, Ethernet2
B E 192.68.0.223/32 [200/0] via 10.230.240.1, Ethernet1
via 10.229.240.1, Ethernet2
B E 192.68.0.224/32 [200/0] via 10.230.240.1, Ethernet1
via 10.229.240.1, Ethernet2
B E 192.68.0.225/32 [200/0] via 10.230.240.1, Ethernet1
via 10.229.240.1, Ethernet2
B E 192.68.0.226/32 [200/0] via 10.230.240.1, Ethernet1
via 10.229.240.1, Ethernet2
B E 192.68.0.229/32 [200/0] via 10.229.240.1, Ethernet2
B E 192.68.0.230/32 [200/0] via 10.230.240.1, Ethernet1
B E 192.68.0.233/32 [200/0] via 10.230.240.1, Ethernet1
via 10.229.240.1, Ethernet2
B E 192.68.0.234/32 [200/0] via 10.230.240.1, Ethernet1
via 10.229.240.1, Ethernet2
B E 192.68.0.241/32 [200/0] via 10.230.240.1, Ethernet1
via 10.229.240.1, Ethernet2
Check Routes - Overlay - Arista - L3 Routes
DC2-R7>show ip route vrf vrf100 bgp
VRF: vrf100
Codes: C - connected, S - static, K - kernel,
O - OSPF, IA - OSPF inter area, E1 - OSPF external type 1,
E2 - OSPF external type 2, N1 - OSPF NSSA external type 1,
N2 - OSPF NSSA external type2, B - Other BGP Routes,
B I - iBGP, B E - eBGP, R - RIP, I L1 - IS-IS level 1,
I L2 - IS-IS level 2, O3 - OSPFv3, A B - BGP Aggregate,
A O - OSPF Summary, NG - Nexthop Group Static Route,
V - VXLAN Control Service, M - Martian,
DH - DHCP client installed default route,
DP - Dynamic Policy Route, L - VRF Leaked,
G - gRIBI, RC - Route Cache Route,
CL - CBF Leaked Route
B E 100.100.1.199/32 [200/0] via VTEP 192.68.0.223 VNI 10100 router-mac 62:03:37:2c:08:05 local-interface Vxlan1
via VTEP 192.68.0.224 VNI 10100 router-mac 84:e4:b3:60:08:05 local-interface Vxlan1
B E 100.100.1.201/32 [200/0] via VTEP 192.68.0.223 VNI 10100 router-mac 62:03:37:2c:08:05 local-interface Vxlan1
B E 100.100.1.202/32 [200/0] via VTEP 192.68.0.224 VNI 10100 router-mac 84:e4:b3:60:08:05 local-interface Vxlan1
B E 100.100.1.210/32 [200/0] via VTEP 192.68.0.225 VNI 10100 router-mac d6:04:e2:27:08:05 local-interface Vxlan1
via VTEP 192.68.0.226 VNI 10100 router-mac 40:e1:0b:38:08:05 local-interface Vxlan1
B E 100.100.1.211/32 [200/0] via VTEP 192.68.0.225 VNI 10100 router-mac d6:04:e2:27:08:05 local-interface Vxlan1
B E 100.100.1.212/32 [200/0] via VTEP 192.68.0.226 VNI 10100 router-mac 40:e1:0b:38:08:05 local-interface Vxlan1
B E 100.100.1.220/32 [200/0] via VTEP 192.68.0.233 VNI 10100 router-mac bc:bc:c2:63:08:05 local-interface Vxlan1
via VTEP 192.68.0.234 VNI 10100 router-mac 9e:d2:e8:28:08:05 local-interface Vxlan1
B E 100.100.2.1/32 [200/0] via VTEP 192.68.0.225 VNI 10100 router-mac d6:04:e2:27:08:05 local-interface Vxlan1
via VTEP 192.68.0.226 VNI 10100 router-mac 40:e1:0b:38:08:05 local-interface Vxlan1
B E 100.100.2.201/32 [200/0] via VTEP 192.68.0.225 VNI 10100 router-mac d6:04:e2:27:08:05 local-interface Vxlan1
via VTEP 192.68.0.226 VNI 10100 router-mac 40:e1:0b:38:08:05 local-interface Vxlan1
B E 100.100.2.0/24 [200/0] via VTEP 192.68.0.225 VNI 10100 router-mac d6:04:e2:27:08:05 local-interface Vxlan1
via VTEP 192.68.0.226 VNI 10100 router-mac 40:e1:0b:38:08:05 local-interface Vxlan1
B E 192.68.0.219/32 [200/0] via VTEP 192.68.0.219 VNI 10100 router-mac a4:52:b9:36:08:05 local-interface Vxlan1
B E 192.68.0.220/32 [200/0] via VTEP 192.68.0.220 VNI 10100 router-mac e8:19:e2:55:08:05 local-interface Vxlan1
B E 192.68.0.223/32 [200/0] via VTEP 192.68.0.223 VNI 10100 router-mac 62:03:37:2c:08:05 local-interface Vxlan1
B E 192.68.0.224/32 [200/0] via VTEP 192.68.0.224 VNI 10100 router-mac 84:e4:b3:60:08:05 local-interface Vxlan1
B E 192.68.0.225/32 [200/0] via VTEP 192.68.0.225 VNI 10100 router-mac d6:04:e2:27:08:05 local-interface Vxlan1
B E 192.68.0.226/32 [200/0] via VTEP 192.68.0.226 VNI 10100 router-mac 40:e1:0b:38:08:05 local-interface Vxlan1
B E 192.68.0.229/32 [200/0] via VTEP 192.68.0.229 VNI 10100 router-mac 00:7e:5d:09:08:05 local-interface Vxlan1
B E 192.68.0.230/32 [200/0] via VTEP 192.68.0.230 VNI 10100 router-mac d2:23:04:68:08:05 local-interface Vxlan1
B E 192.68.0.233/32 [200/0] via VTEP 192.68.0.233 VNI 10100 router-mac bc:bc:c2:63:08:05 local-interface Vxlan1
B E 192.68.0.234/32 [200/0] via VTEP 192.68.0.234 VNI 10100 router-mac 9e:d2:e8:28:08:05 local-interface Vxlan1
B E 200.200.1.1/32 [200/0] via VTEP 192.68.0.233 VNI 10100 router-mac bc:bc:c2:63:08:05 local-interface Vxlan1
via VTEP 192.68.0.234 VNI 10100 router-mac 9e:d2:e8:28:08:05 local-interface Vxlan1
B E 200.200.1.0/24 [200/0] via VTEP 192.68.0.233 VNI 10100 router-mac bc:bc:c2:63:08:05 local-interface Vxlan1
via VTEP 192.68.0.234 VNI 10100 router-mac 9e:d2:e8:28:08:05 local-interface Vxlan1
B E 200.200.2.1/32 [200/0] via VTEP 192.68.0.233 VNI 10100 router-mac bc:bc:c2:63:08:05 local-interface Vxlan1
via VTEP 192.68.0.234 VNI 10100 router-mac 9e:d2:e8:28:08:05 local-interface Vxlan1
B E 200.200.2.0/24 [200/0] via VTEP 192.68.0.241 VNI 10100 router-mac 50:00:00:aa:5c:3a local-interface Vxlan1
Check Routes - Overlay - Arista- L2 Routes
DC2-R7>show bgp evpn
BGP routing table information for VRF default
Router identifier 192.68.0.240, local AS number 65000
Route status codes: * - valid, > - active, S - Stale, E - ECMP head, e - ECMP
c - Contributing to ECMP, % - Pending BGP convergence
Origin codes: i - IGP, e - EGP, ? - incomplete
AS Path Attributes: Or-ID - Originator ID, C-LST - Cluster List, LL Nexthop - Link Local Nexthop
Network Next Hop Metric LocPref Weight Path
* >Ec RD: 192.68.0.223:56 auto-discovery 0 0000:0500:0000:0001:0000
192.68.0.223 - 100 0 65229 65220 65223 i
* ec RD: 192.68.0.223:56 auto-discovery 0 0000:0500:0000:0001:0000
192.68.0.223 - 100 0 65230 65219 65223 i
* RD: 192.68.0.223:56 auto-discovery 0 0000:0500:0000:0001:0000
192.68.0.223 - 100 0 65241 65230 65219 65223 i
* >Ec RD: 192.68.0.224:51 auto-discovery 0 0000:0500:0000:0001:0000
192.68.0.224 - 100 0 65229 65220 65224 i
* ec RD: 192.68.0.224:51 auto-discovery 0 0000:0500:0000:0001:0000
192.68.0.224 - 100 0 65230 65219 65224 i
* RD: 192.68.0.224:51 auto-discovery 0 0000:0500:0000:0001:0000
192.68.0.224 - 100 0 65241 65230 65219 65224 i
* >Ec RD: 192.68.0.223:0 auto-discovery 0000:0500:0000:0001:0000
192.68.0.223 - 100 0 65230 65219 65223 i
* ec RD: 192.68.0.223:0 auto-discovery 0000:0500:0000:0001:0000
192.68.0.223 - 100 0 65229 65220 65223 i
* RD: 192.68.0.223:0 auto-discovery 0000:0500:0000:0001:0000
192.68.0.223 - 100 0 65241 65230 65219 65223 i
* >Ec RD: 192.68.0.224:0 auto-discovery 0000:0500:0000:0001:0000
192.68.0.224 - 100 0 65230 65219 65224 i
* ec RD: 192.68.0.224:0 auto-discovery 0000:0500:0000:0001:0000
192.68.0.224 - 100 0 65229 65220 65224 i
* RD: 192.68.0.224:0 auto-discovery 0000:0500:0000:0001:0000
192.68.0.224 - 100 0 65241 65230 65219 65224 i
* >Ec RD: 192.68.0.223:57 auto-discovery 0 0000:0500:0000:0001:0100
192.68.0.223 - 100 0 65229 65220 65223 i
* ec RD: 192.68.0.223:57 auto-discovery 0 0000:0500:0000:0001:0100
192.68.0.223 - 100 0 65230 65219 65223 i
* RD: 192.68.0.223:57 auto-discovery 0 0000:0500:0000:0001:0100
192.68.0.223 - 100 0 65241 65230 65219 65223 i
* >Ec RD: 192.68.0.224:52 auto-discovery 0 0000:0500:0000:0001:0100
192.68.0.224 - 100 0 65229 65220 65224 i
* ec RD: 192.68.0.224:52 auto-discovery 0 0000:0500:0000:0001:0100
192.68.0.224 - 100 0 65230 65219 65224 i
* RD: 192.68.0.224:52 auto-discovery 0 0000:0500:0000:0001:0100
192.68.0.224 - 100 0 65241 65230 65219 65224 i
* >Ec RD: 192.68.0.223:0 auto-discovery 0000:0500:0000:0001:0100
192.68.0.223 - 100 0 65230 65219 65223 i
* ec RD: 192.68.0.223:0 auto-discovery 0000:0500:0000:0001:0100
192.68.0.223 - 100 0 65229 65220 65223 i
* RD: 192.68.0.223:0 auto-discovery 0000:0500:0000:0001:0100
192.68.0.223 - 100 0 65241 65230 65219 65223 i
* >Ec RD: 192.68.0.224:0 auto-discovery 0000:0500:0000:0001:0100
192.68.0.224 - 100 0 65230 65219 65224 i
* ec RD: 192.68.0.224:0 auto-discovery 0000:0500:0000:0001:0100
192.68.0.224 - 100 0 65229 65220 65224 i
* RD: 192.68.0.224:0 auto-discovery 0000:0500:0000:0001:0100
192.68.0.224 - 100 0 65241 65230 65219 65224 i
* >Ec RD: 192.68.0.225:51 auto-discovery 0 0000:0500:0000:0002:0000
192.68.0.225 - 100 0 65229 65220 65225 i
* ec RD: 192.68.0.225:51 auto-discovery 0 0000:0500:0000:0002:0000
192.68.0.225 - 100 0 65230 65219 65225 i
* RD: 192.68.0.225:51 auto-discovery 0 0000:0500:0000:0002:0000
192.68.0.225 - 100 0 65241 65229 65220 65225 i
* >Ec RD: 192.68.0.226:54 auto-discovery 0 0000:0500:0000:0002:0000
192.68.0.226 - 100 0 65229 65220 65226 i
* ec RD: 192.68.0.226:54 auto-discovery 0 0000:0500:0000:0002:0000
192.68.0.226 - 100 0 65230 65219 65226 i
* RD: 192.68.0.226:54 auto-discovery 0 0000:0500:0000:0002:0000
192.68.0.226 - 100 0 65241 65229 65220 65226 i
* >Ec RD: 192.68.0.225:0 auto-discovery 0000:0500:0000:0002:0000
192.68.0.225 - 100 0 65229 65220 65225 i
* ec RD: 192.68.0.225:0 auto-discovery 0000:0500:0000:0002:0000
192.68.0.225 - 100 0 65230 65219 65225 i
* RD: 192.68.0.225:0 auto-discovery 0000:0500:0000:0002:0000
192.68.0.225 - 100 0 65241 65229 65220 65225 i
* >Ec RD: 192.68.0.226:0 auto-discovery 0000:0500:0000:0002:0000
192.68.0.226 - 100 0 65229 65220 65226 i
* ec RD: 192.68.0.226:0 auto-discovery 0000:0500:0000:0002:0000
192.68.0.226 - 100 0 65230 65219 65226 i
* RD: 192.68.0.226:0 auto-discovery 0000:0500:0000:0002:0000
192.68.0.226 - 100 0 65241 65229 65220 65226 i
* >Ec RD: 192.68.0.225:51 auto-discovery 0 0000:0500:0000:0002:0100
192.68.0.225 - 100 0 65229 65220 65225 i
* ec RD: 192.68.0.225:51 auto-discovery 0 0000:0500:0000:0002:0100
192.68.0.225 - 100 0 65230 65219 65225 i
* RD: 192.68.0.225:51 auto-discovery 0 0000:0500:0000:0002:0100
192.68.0.225 - 100 0 65241 65229 65220 65225 i
* >Ec RD: 192.68.0.226:54 auto-discovery 0 0000:0500:0000:0002:0100
192.68.0.226 - 100 0 65229 65220 65226 i
* ec RD: 192.68.0.226:54 auto-discovery 0 0000:0500:0000:0002:0100
192.68.0.226 - 100 0 65230 65219 65226 i
* RD: 192.68.0.226:54 auto-discovery 0 0000:0500:0000:0002:0100
192.68.0.226 - 100 0 65241 65229 65220 65226 i
* >Ec RD: 192.68.0.225:0 auto-discovery 0000:0500:0000:0002:0100
192.68.0.225 - 100 0 65229 65220 65225 i
* ec RD: 192.68.0.225:0 auto-discovery 0000:0500:0000:0002:0100
192.68.0.225 - 100 0 65230 65219 65225 i
* RD: 192.68.0.225:0 auto-discovery 0000:0500:0000:0002:0100
192.68.0.225 - 100 0 65241 65229 65220 65225 i
* >Ec RD: 192.68.0.226:0 auto-discovery 0000:0500:0000:0002:0100
192.68.0.226 - 100 0 65229 65220 65226 i
* ec RD: 192.68.0.226:0 auto-discovery 0000:0500:0000:0002:0100
192.68.0.226 - 100 0 65230 65219 65226 i
* RD: 192.68.0.226:0 auto-discovery 0000:0500:0000:0002:0100
192.68.0.226 - 100 0 65241 65229 65220 65226 i
* >Ec RD: 192.68.0.233:54 auto-discovery 0 0000:0500:0000:0003:0000
192.68.0.233 - 100 0 65230 65233 i
* ec RD: 192.68.0.233:54 auto-discovery 0 0000:0500:0000:0003:0000
192.68.0.233 - 100 0 65229 65233 i
* RD: 192.68.0.233:54 auto-discovery 0 0000:0500:0000:0003:0000
192.68.0.233 - 100 0 65241 65230 65233 i
* >Ec RD: 192.68.0.234:51 auto-discovery 0 0000:0500:0000:0003:0000
192.68.0.234 - 100 0 65229 65234 i
* ec RD: 192.68.0.234:51 auto-discovery 0 0000:0500:0000:0003:0000
192.68.0.234 - 100 0 65230 65234 i
* RD: 192.68.0.234:51 auto-discovery 0 0000:0500:0000:0003:0000
192.68.0.234 - 100 0 65241 65229 65234 i
* >Ec RD: 192.68.0.233:0 auto-discovery 0000:0500:0000:0003:0000
192.68.0.233 - 100 0 65230 65233 i
* ec RD: 192.68.0.233:0 auto-discovery 0000:0500:0000:0003:0000
192.68.0.233 - 100 0 65229 65233 i
* RD: 192.68.0.233:0 auto-discovery 0000:0500:0000:0003:0000
192.68.0.233 - 100 0 65241 65230 65233 i
* >Ec RD: 192.68.0.234:0 auto-discovery 0000:0500:0000:0003:0000
192.68.0.234 - 100 0 65230 65234 i
* ec RD: 192.68.0.234:0 auto-discovery 0000:0500:0000:0003:0000
192.68.0.234 - 100 0 65229 65234 i
* RD: 192.68.0.234:0 auto-discovery 0000:0500:0000:0003:0000
192.68.0.234 - 100 0 65241 65230 65234 i
* >Ec RD: 192.68.0.233:54 auto-discovery 0 0000:0500:0000:0003:0100
192.68.0.233 - 100 0 65229 65233 i
* ec RD: 192.68.0.233:54 auto-discovery 0 0000:0500:0000:0003:0100
192.68.0.233 - 100 0 65230 65233 i
* RD: 192.68.0.233:54 auto-discovery 0 0000:0500:0000:0003:0100
192.68.0.233 - 100 0 65241 65229 65233 i
* >Ec RD: 192.68.0.234:51 auto-discovery 0 0000:0500:0000:0003:0100
192.68.0.234 - 100 0 65230 65234 i
* ec RD: 192.68.0.234:51 auto-discovery 0 0000:0500:0000:0003:0100
192.68.0.234 - 100 0 65229 65234 i
* RD: 192.68.0.234:51 auto-discovery 0 0000:0500:0000:0003:0100
192.68.0.234 - 100 0 65241 65230 65234 i
* >Ec RD: 192.68.0.233:0 auto-discovery 0000:0500:0000:0003:0100
192.68.0.233 - 100 0 65229 65233 i
* ec RD: 192.68.0.233:0 auto-discovery 0000:0500:0000:0003:0100
192.68.0.233 - 100 0 65230 65233 i
* RD: 192.68.0.233:0 auto-discovery 0000:0500:0000:0003:0100
192.68.0.233 - 100 0 65241 65229 65233 i
* >Ec RD: 192.68.0.234:0 auto-discovery 0000:0500:0000:0003:0100
192.68.0.234 - 100 0 65229 65234 i
* ec RD: 192.68.0.234:0 auto-discovery 0000:0500:0000:0003:0100
192.68.0.234 - 100 0 65230 65234 i
* RD: 192.68.0.234:0 auto-discovery 0000:0500:0000:0003:0100
192.68.0.234 - 100 0 65241 65229 65234 i
* >Ec RD: 192.68.0.223:56 mac-ip 100 0000.5e64.6401
192.68.0.223 - 100 0 65229 65220 65223 i
* ec RD: 192.68.0.223:56 mac-ip 100 0000.5e64.6401
192.68.0.223 - 100 0 65230 65219 65223 i
* RD: 192.68.0.223:56 mac-ip 100 0000.5e64.6401
192.68.0.223 - 100 0 65241 65229 65220 65223 i
* >Ec RD: 192.68.0.224:51 mac-ip 100 0000.5e64.6401
192.68.0.224 - 100 0 65229 65220 65224 i
* ec RD: 192.68.0.224:51 mac-ip 100 0000.5e64.6401
192.68.0.224 - 100 0 65230 65219 65224 i
* RD: 192.68.0.224:51 mac-ip 100 0000.5e64.6401
192.68.0.224 - 100 0 65241 65229 65220 65224 i
* >Ec RD: 192.68.0.225:51 mac-ip 100 0000.5e64.6401
192.68.0.225 - 100 0 65229 65220 65225 i
* ec RD: 192.68.0.225:51 mac-ip 100 0000.5e64.6401
192.68.0.225 - 100 0 65230 65219 65225 i
* RD: 192.68.0.225:51 mac-ip 100 0000.5e64.6401
192.68.0.225 - 100 0 65241 65229 65220 65225 i
* >Ec RD: 192.68.0.226:54 mac-ip 100 0000.5e64.6401
192.68.0.226 - 100 0 65229 65220 65226 i
* ec RD: 192.68.0.226:54 mac-ip 100 0000.5e64.6401
192.68.0.226 - 100 0 65230 65219 65226 i
* RD: 192.68.0.226:54 mac-ip 100 0000.5e64.6401
192.68.0.226 - 100 0 65241 65229 65220 65226 i
* >Ec RD: 192.68.0.233:54 mac-ip 100 0000.5e64.6401
192.68.0.233 - 100 0 65230 65233 i
* ec RD: 192.68.0.233:54 mac-ip 100 0000.5e64.6401
192.68.0.233 - 100 0 65229 65233 i
* RD: 192.68.0.233:54 mac-ip 100 0000.5e64.6401
192.68.0.233 - 100 0 65241 65230 65233 i
* >Ec RD: 192.68.0.234:51 mac-ip 100 0000.5e64.6401
192.68.0.234 - 100 0 65229 65234 i
* ec RD: 192.68.0.234:51 mac-ip 100 0000.5e64.6401
192.68.0.234 - 100 0 65230 65234 i
* RD: 192.68.0.234:51 mac-ip 100 0000.5e64.6401
192.68.0.234 - 100 0 65241 65229 65234 i
* >Ec RD: 192.68.0.223:56 mac-ip 100 0000.5e64.6401 100.100.1.1
192.68.0.223 - 100 0 65229 65220 65223 i
* ec RD: 192.68.0.223:56 mac-ip 100 0000.5e64.6401 100.100.1.1
192.68.0.223 - 100 0 65230 65219 65223 i
* RD: 192.68.0.223:56 mac-ip 100 0000.5e64.6401 100.100.1.1
192.68.0.223 - 100 0 65241 65229 65220 65223 i
* >Ec RD: 192.68.0.224:51 mac-ip 100 0000.5e64.6401 100.100.1.1
192.68.0.224 - 100 0 65229 65220 65224 i
* ec RD: 192.68.0.224:51 mac-ip 100 0000.5e64.6401 100.100.1.1
192.68.0.224 - 100 0 65230 65219 65224 i
* RD: 192.68.0.224:51 mac-ip 100 0000.5e64.6401 100.100.1.1
192.68.0.224 - 100 0 65241 65229 65220 65224 i
* >Ec RD: 192.68.0.225:51 mac-ip 100 0000.5e64.6401 100.100.1.1
192.68.0.225 - 100 0 65229 65220 65225 i
* ec RD: 192.68.0.225:51 mac-ip 100 0000.5e64.6401 100.100.1.1
192.68.0.225 - 100 0 65230 65219 65225 i
* RD: 192.68.0.225:51 mac-ip 100 0000.5e64.6401 100.100.1.1
192.68.0.225 - 100 0 65241 65229 65220 65225 i
* >Ec RD: 192.68.0.226:54 mac-ip 100 0000.5e64.6401 100.100.1.1
192.68.0.226 - 100 0 65229 65220 65226 i
* ec RD: 192.68.0.226:54 mac-ip 100 0000.5e64.6401 100.100.1.1
192.68.0.226 - 100 0 65230 65219 65226 i
* RD: 192.68.0.226:54 mac-ip 100 0000.5e64.6401 100.100.1.1
192.68.0.226 - 100 0 65241 65229 65220 65226 i
* >Ec RD: 192.68.0.233:54 mac-ip 100 0000.5e64.6401 100.100.1.1
192.68.0.233 - 100 0 65230 65233 i
* ec RD: 192.68.0.233:54 mac-ip 100 0000.5e64.6401 100.100.1.1
192.68.0.233 - 100 0 65229 65233 i
* RD: 192.68.0.233:54 mac-ip 100 0000.5e64.6401 100.100.1.1
192.68.0.233 - 100 0 65241 65230 65233 i
* >Ec RD: 192.68.0.234:51 mac-ip 100 0000.5e64.6401 100.100.1.1
192.68.0.234 - 100 0 65229 65234 i
* ec RD: 192.68.0.234:51 mac-ip 100 0000.5e64.6401 100.100.1.1
192.68.0.234 - 100 0 65230 65234 i
* RD: 192.68.0.234:51 mac-ip 100 0000.5e64.6401 100.100.1.1
192.68.0.234 - 100 0 65241 65229 65234 i
* >Ec RD: 192.68.0.233:54 mac-ip 100 0000.5e64.6401 200.200.1.1
192.68.0.233 - 100 0 65230 65233 i
* ec RD: 192.68.0.233:54 mac-ip 100 0000.5e64.6401 200.200.1.1
192.68.0.233 - 100 0 65229 65233 i
* RD: 192.68.0.233:54 mac-ip 100 0000.5e64.6401 200.200.1.1
192.68.0.233 - 100 0 65241 65230 65233 i
* >Ec RD: 192.68.0.234:51 mac-ip 100 0000.5e64.6401 200.200.1.1
192.68.0.234 - 100 0 65229 65234 i
* ec RD: 192.68.0.234:51 mac-ip 100 0000.5e64.6401 200.200.1.1
192.68.0.234 - 100 0 65230 65234 i
* RD: 192.68.0.234:51 mac-ip 100 0000.5e64.6401 200.200.1.1
192.68.0.234 - 100 0 65241 65229 65234 i
* >Ec RD: 192.68.0.225:51 mac-ip 100 0050.7966.6828
192.68.0.225 - 100 0 65229 65220 65225 i
* ec RD: 192.68.0.225:51 mac-ip 100 0050.7966.6828
192.68.0.225 - 100 0 65230 65219 65225 i
* RD: 192.68.0.225:51 mac-ip 100 0050.7966.6828
192.68.0.225 - 100 0 65241 65229 65220 65225 i
* >Ec RD: 192.68.0.226:54 mac-ip 100 0050.7966.6828
192.68.0.226 - 100 0 65229 65220 65226 i
* ec RD: 192.68.0.226:54 mac-ip 100 0050.7966.6828
192.68.0.226 - 100 0 65230 65219 65226 i
* RD: 192.68.0.226:54 mac-ip 100 0050.7966.6828
192.68.0.226 - 100 0 65241 65229 65220 65226 i
* >Ec RD: 192.68.0.225:51 mac-ip 100 0050.7966.6828 100.100.1.210
192.68.0.225 - 100 0 65229 65220 65225 i
* ec RD: 192.68.0.225:51 mac-ip 100 0050.7966.6828 100.100.1.210
192.68.0.225 - 100 0 65230 65219 65225 i
* RD: 192.68.0.225:51 mac-ip 100 0050.7966.6828 100.100.1.210
192.68.0.225 - 100 0 65241 65229 65220 65225 i
* >Ec RD: 192.68.0.226:54 mac-ip 100 0050.7966.6828 100.100.1.210
192.68.0.226 - 100 0 65230 65219 65226 i
* ec RD: 192.68.0.226:54 mac-ip 100 0050.7966.6828 100.100.1.210
192.68.0.226 - 100 0 65229 65220 65226 i
* RD: 192.68.0.226:54 mac-ip 100 0050.7966.6828 100.100.1.210
192.68.0.226 - 100 0 65241 65230 65219 65226 i
* >Ec RD: 192.68.0.223:56 mac-ip 100 0050.7966.682a
192.68.0.223 - 100 0 65229 65220 65223 i
* ec RD: 192.68.0.223:56 mac-ip 100 0050.7966.682a
192.68.0.223 - 100 0 65230 65219 65223 i
* RD: 192.68.0.223:56 mac-ip 100 0050.7966.682a
192.68.0.223 - 100 0 65241 65229 65220 65223 i
* >Ec RD: 192.68.0.223:56 mac-ip 100 0050.7966.682a 100.100.1.201
192.68.0.223 - 100 0 65229 65220 65223 i
* ec RD: 192.68.0.223:56 mac-ip 100 0050.7966.682a 100.100.1.201
192.68.0.223 - 100 0 65230 65219 65223 i
* RD: 192.68.0.223:56 mac-ip 100 0050.7966.682a 100.100.1.201
192.68.0.223 - 100 0 65241 65229 65220 65223 i
* >Ec RD: 192.68.0.225:51 mac-ip 100 0050.7966.682b
192.68.0.225 - 100 0 65229 65220 65225 i
* ec RD: 192.68.0.225:51 mac-ip 100 0050.7966.682b
192.68.0.225 - 100 0 65230 65219 65225 i
* RD: 192.68.0.225:51 mac-ip 100 0050.7966.682b
192.68.0.225 - 100 0 65241 65229 65220 65225 i
* >Ec RD: 192.68.0.225:51 mac-ip 100 0050.7966.682b 100.100.1.211
192.68.0.225 - 100 0 65229 65220 65225 i
* ec RD: 192.68.0.225:51 mac-ip 100 0050.7966.682b 100.100.1.211
192.68.0.225 - 100 0 65230 65219 65225 i
* RD: 192.68.0.225:51 mac-ip 100 0050.7966.682b 100.100.1.211
192.68.0.225 - 100 0 65241 65229 65220 65225 i
* >Ec RD: 192.68.0.224:51 mac-ip 100 0050.7966.682f
192.68.0.224 - 100 0 65230 65219 65224 i
* ec RD: 192.68.0.224:51 mac-ip 100 0050.7966.682f
192.68.0.224 - 100 0 65229 65220 65224 i
* RD: 192.68.0.224:51 mac-ip 100 0050.7966.682f
192.68.0.224 - 100 0 65241 65230 65219 65224 i
* >Ec RD: 192.68.0.224:51 mac-ip 100 0050.7966.682f 100.100.1.202
192.68.0.224 - 100 0 65230 65219 65224 i
* ec RD: 192.68.0.224:51 mac-ip 100 0050.7966.682f 100.100.1.202
192.68.0.224 - 100 0 65229 65220 65224 i
* RD: 192.68.0.224:51 mac-ip 100 0050.7966.682f 100.100.1.202
192.68.0.224 - 100 0 65241 65230 65219 65224 i
* >Ec RD: 192.68.0.226:54 mac-ip 100 0050.7966.6830
192.68.0.226 - 100 0 65229 65220 65226 i
* ec RD: 192.68.0.226:54 mac-ip 100 0050.7966.6830
192.68.0.226 - 100 0 65230 65219 65226 i
* RD: 192.68.0.226:54 mac-ip 100 0050.7966.6830
192.68.0.226 - 100 0 65241 65229 65220 65226 i
* >Ec RD: 192.68.0.226:54 mac-ip 100 0050.7966.6830 100.100.1.212
192.68.0.226 - 100 0 65229 65220 65226 i
* ec RD: 192.68.0.226:54 mac-ip 100 0050.7966.6830 100.100.1.212
192.68.0.226 - 100 0 65230 65219 65226 i
* RD: 192.68.0.226:54 mac-ip 100 0050.7966.6830 100.100.1.212
192.68.0.226 - 100 0 65241 65229 65220 65226 i
* >Ec RD: 192.68.0.233:54 mac-ip 100 0050.7966.6837
192.68.0.233 - 100 0 65230 65233 i
* ec RD: 192.68.0.233:54 mac-ip 100 0050.7966.6837
192.68.0.233 - 100 0 65229 65233 i
* RD: 192.68.0.233:54 mac-ip 100 0050.7966.6837
192.68.0.233 - 100 0 65241 65230 65233 i
* >Ec RD: 192.68.0.234:51 mac-ip 100 0050.7966.6837
192.68.0.234 - 100 0 65229 65234 i
* ec RD: 192.68.0.234:51 mac-ip 100 0050.7966.6837
192.68.0.234 - 100 0 65230 65234 i
* RD: 192.68.0.234:51 mac-ip 100 0050.7966.6837
192.68.0.234 - 100 0 65241 65229 65234 i
* >Ec RD: 192.68.0.233:54 mac-ip 100 0050.7966.6837 100.100.1.220
192.68.0.233 - 100 0 65229 65233 i
* ec RD: 192.68.0.233:54 mac-ip 100 0050.7966.6837 100.100.1.220
192.68.0.233 - 100 0 65230 65233 i
* RD: 192.68.0.233:54 mac-ip 100 0050.7966.6837 100.100.1.220
192.68.0.233 - 100 0 65241 65229 65233 i
* >Ec RD: 192.68.0.234:51 mac-ip 100 0050.7966.6837 100.100.1.220
192.68.0.234 - 100 0 65229 65234 i
* ec RD: 192.68.0.234:51 mac-ip 100 0050.7966.6837 100.100.1.220
192.68.0.234 - 100 0 65230 65234 i
* RD: 192.68.0.234:51 mac-ip 100 0050.7966.6837 100.100.1.220
192.68.0.234 - 100 0 65241 65229 65234 i
* > RD: 192.68.0.240:100 mac-ip 100 0050.7966.6839
- - - 0 i
* > RD: 192.68.0.241:100 mac-ip 100 0050.7966.6839
192.68.0.241 - 100 0 65241 i
* Ec RD: 192.68.0.241:100 mac-ip 100 0050.7966.6839
192.68.0.241 - 100 0 65230 65241 i
* ec RD: 192.68.0.241:100 mac-ip 100 0050.7966.6839
192.68.0.241 - 100 0 65229 65241 i
* >Ec RD: 192.68.0.234:51 mac-ip 100 5000.0017.0004
192.68.0.234 - 100 0 65230 65234 i
* ec RD: 192.68.0.234:51 mac-ip 100 5000.0017.0004
192.68.0.234 - 100 0 65229 65234 i
* RD: 192.68.0.234:51 mac-ip 100 5000.0017.0004
192.68.0.234 - 100 0 65241 65230 65234 i
* >Ec RD: 192.68.0.233:54 mac-ip 100 5000.0018.0004
192.68.0.233 - 100 0 65229 65233 i
* ec RD: 192.68.0.233:54 mac-ip 100 5000.0018.0004
192.68.0.233 - 100 0 65230 65233 i
* RD: 192.68.0.233:54 mac-ip 100 5000.0018.0004
192.68.0.233 - 100 0 65241 65229 65233 i
* >Ec RD: 192.68.0.226:54 mac-ip 100 5000.0020.0003
192.68.0.226 - 100 0 65229 65220 65226 i
* ec RD: 192.68.0.226:54 mac-ip 100 5000.0020.0003
192.68.0.226 - 100 0 65230 65219 65226 i
* RD: 192.68.0.226:54 mac-ip 100 5000.0020.0003
192.68.0.226 - 100 0 65241 65229 65220 65226 i
* >Ec RD: 192.68.0.225:51 mac-ip 100 5000.0021.0003
192.68.0.225 - 100 0 65229 65220 65225 i
* ec RD: 192.68.0.225:51 mac-ip 100 5000.0021.0003
192.68.0.225 - 100 0 65230 65219 65225 i
* RD: 192.68.0.225:51 mac-ip 100 5000.0021.0003
192.68.0.225 - 100 0 65241 65229 65220 65225 i
* >Ec RD: 192.68.0.224:51 mac-ip 100 5000.0022.0003
192.68.0.224 - 100 0 65229 65220 65224 i
* ec RD: 192.68.0.224:51 mac-ip 100 5000.0022.0003
192.68.0.224 - 100 0 65230 65219 65224 i
* RD: 192.68.0.224:51 mac-ip 100 5000.0022.0003
192.68.0.224 - 100 0 65241 65229 65220 65224 i
* >Ec RD: 192.68.0.223:56 mac-ip 100 5000.0023.0003
192.68.0.223 - 100 0 65229 65220 65223 i
* ec RD: 192.68.0.223:56 mac-ip 100 5000.0023.0003
192.68.0.223 - 100 0 65230 65219 65223 i
* RD: 192.68.0.223:56 mac-ip 100 5000.0023.0003
192.68.0.223 - 100 0 65241 65229 65220 65223 i
* >Ec RD: 192.68.0.223:56 mac-ip 100 5000.0044.0001
192.68.0.223 - 100 0 65229 65220 65223 i
* ec RD: 192.68.0.223:56 mac-ip 100 5000.0044.0001
192.68.0.223 - 100 0 65230 65219 65223 i
* RD: 192.68.0.223:56 mac-ip 100 5000.0044.0001
192.68.0.223 - 100 0 65241 65229 65220 65223 i
* >Ec RD: 192.68.0.224:51 mac-ip 100 5000.0044.0001
192.68.0.224 - 100 0 65230 65219 65224 i
* ec RD: 192.68.0.224:51 mac-ip 100 5000.0044.0001
192.68.0.224 - 100 0 65229 65220 65224 i
* RD: 192.68.0.224:51 mac-ip 100 5000.0044.0001
192.68.0.224 - 100 0 65241 65230 65219 65224 i
* >Ec RD: 192.68.0.223:56 mac-ip 100 5000.0044.0001 100.100.1.199
192.68.0.223 - 100 0 65229 65220 65223 i
* ec RD: 192.68.0.223:56 mac-ip 100 5000.0044.0001 100.100.1.199
192.68.0.223 - 100 0 65230 65219 65223 i
* RD: 192.68.0.223:56 mac-ip 100 5000.0044.0001 100.100.1.199
192.68.0.223 - 100 0 65241 65229 65220 65223 i
* >Ec RD: 192.68.0.224:51 mac-ip 100 5000.0044.0001 100.100.1.199
192.68.0.224 - 100 0 65230 65219 65224 i
* ec RD: 192.68.0.224:51 mac-ip 100 5000.0044.0001 100.100.1.199
192.68.0.224 - 100 0 65229 65220 65224 i
* RD: 192.68.0.224:51 mac-ip 100 5000.0044.0001 100.100.1.199
192.68.0.224 - 100 0 65241 65230 65219 65224 i
* >Ec RD: 192.68.0.223:57 mac-ip 101 0000.5e64.6402
192.68.0.223 - 100 0 65229 65220 65223 i
* ec RD: 192.68.0.223:57 mac-ip 101 0000.5e64.6402
192.68.0.223 - 100 0 65230 65219 65223 i
* RD: 192.68.0.223:57 mac-ip 101 0000.5e64.6402
192.68.0.223 - 100 0 65241 65229 65220 65223 i
* >Ec RD: 192.68.0.224:52 mac-ip 101 0000.5e64.6402
192.68.0.224 - 100 0 65229 65220 65224 i
* ec RD: 192.68.0.224:52 mac-ip 101 0000.5e64.6402
192.68.0.224 - 100 0 65230 65219 65224 i
* RD: 192.68.0.224:52 mac-ip 101 0000.5e64.6402
192.68.0.224 - 100 0 65241 65229 65220 65224 i
* >Ec RD: 192.68.0.225:51 mac-ip 101 0000.5e64.6402
192.68.0.225 - 100 0 65229 65220 65225 i
* ec RD: 192.68.0.225:51 mac-ip 101 0000.5e64.6402
192.68.0.225 - 100 0 65230 65219 65225 i
* RD: 192.68.0.225:51 mac-ip 101 0000.5e64.6402
192.68.0.225 - 100 0 65241 65229 65220 65225 i
* >Ec RD: 192.68.0.226:54 mac-ip 101 0000.5e64.6402
192.68.0.226 - 100 0 65229 65220 65226 i
* ec RD: 192.68.0.226:54 mac-ip 101 0000.5e64.6402
192.68.0.226 - 100 0 65230 65219 65226 i
* RD: 192.68.0.226:54 mac-ip 101 0000.5e64.6402
192.68.0.226 - 100 0 65241 65229 65220 65226 i
* >Ec RD: 192.68.0.223:57 mac-ip 101 0000.5e64.6402 100.100.2.1
192.68.0.223 - 100 0 65229 65220 65223 i
* ec RD: 192.68.0.223:57 mac-ip 101 0000.5e64.6402 100.100.2.1
192.68.0.223 - 100 0 65230 65219 65223 i
* RD: 192.68.0.223:57 mac-ip 101 0000.5e64.6402 100.100.2.1
192.68.0.223 - 100 0 65241 65229 65220 65223 i
* >Ec RD: 192.68.0.224:52 mac-ip 101 0000.5e64.6402 100.100.2.1
192.68.0.224 - 100 0 65229 65220 65224 i
* ec RD: 192.68.0.224:52 mac-ip 101 0000.5e64.6402 100.100.2.1
192.68.0.224 - 100 0 65230 65219 65224 i
* RD: 192.68.0.224:52 mac-ip 101 0000.5e64.6402 100.100.2.1
192.68.0.224 - 100 0 65241 65229 65220 65224 i
* >Ec RD: 192.68.0.225:51 mac-ip 101 0000.5e64.6402 100.100.2.1
192.68.0.225 - 100 0 65229 65220 65225 i
* ec RD: 192.68.0.225:51 mac-ip 101 0000.5e64.6402 100.100.2.1
192.68.0.225 - 100 0 65230 65219 65225 i
* RD: 192.68.0.225:51 mac-ip 101 0000.5e64.6402 100.100.2.1
192.68.0.225 - 100 0 65241 65229 65220 65225 i
* >Ec RD: 192.68.0.226:54 mac-ip 101 0000.5e64.6402 100.100.2.1
192.68.0.226 - 100 0 65229 65220 65226 i
* ec RD: 192.68.0.226:54 mac-ip 101 0000.5e64.6402 100.100.2.1
192.68.0.226 - 100 0 65230 65219 65226 i
* RD: 192.68.0.226:54 mac-ip 101 0000.5e64.6402 100.100.2.1
192.68.0.226 - 100 0 65241 65229 65220 65226 i
* >Ec RD: 192.68.0.233:54 mac-ip 101 0000.5ec8.c802
192.68.0.233 - 100 0 65230 65233 i
* ec RD: 192.68.0.233:54 mac-ip 101 0000.5ec8.c802
192.68.0.233 - 100 0 65229 65233 i
* RD: 192.68.0.233:54 mac-ip 101 0000.5ec8.c802
192.68.0.233 - 100 0 65241 65230 65233 i
* >Ec RD: 192.68.0.234:51 mac-ip 101 0000.5ec8.c802
192.68.0.234 - 100 0 65229 65234 i
* ec RD: 192.68.0.234:51 mac-ip 101 0000.5ec8.c802
192.68.0.234 - 100 0 65230 65234 i
* RD: 192.68.0.234:51 mac-ip 101 0000.5ec8.c802
192.68.0.234 - 100 0 65241 65229 65234 i
* >Ec RD: 192.68.0.233:54 mac-ip 101 0000.5ec8.c802 200.200.2.1
192.68.0.233 - 100 0 65230 65233 i
* ec RD: 192.68.0.233:54 mac-ip 101 0000.5ec8.c802 200.200.2.1
192.68.0.233 - 100 0 65229 65233 i
* RD: 192.68.0.233:54 mac-ip 101 0000.5ec8.c802 200.200.2.1
192.68.0.233 - 100 0 65241 65230 65233 i
* >Ec RD: 192.68.0.234:51 mac-ip 101 0000.5ec8.c802 200.200.2.1
192.68.0.234 - 100 0 65229 65234 i
* ec RD: 192.68.0.234:51 mac-ip 101 0000.5ec8.c802 200.200.2.1
192.68.0.234 - 100 0 65230 65234 i
* RD: 192.68.0.234:51 mac-ip 101 0000.5ec8.c802 200.200.2.1
192.68.0.234 - 100 0 65241 65229 65234 i
* >Ec RD: 192.68.0.225:51 mac-ip 101 0050.7966.682e
192.68.0.225 - 100 0 65229 65220 65225 i
* ec RD: 192.68.0.225:51 mac-ip 101 0050.7966.682e
192.68.0.225 - 100 0 65230 65219 65225 i
* RD: 192.68.0.225:51 mac-ip 101 0050.7966.682e
192.68.0.225 - 100 0 65241 65229 65220 65225 i
* >Ec RD: 192.68.0.226:54 mac-ip 101 0050.7966.682e
192.68.0.226 - 100 0 65229 65220 65226 i
* ec RD: 192.68.0.226:54 mac-ip 101 0050.7966.682e
192.68.0.226 - 100 0 65230 65219 65226 i
* RD: 192.68.0.226:54 mac-ip 101 0050.7966.682e
192.68.0.226 - 100 0 65241 65229 65220 65226 i
* >Ec RD: 192.68.0.225:51 mac-ip 101 0050.7966.682e 100.100.2.201
192.68.0.225 - 100 0 65229 65220 65225 i
* ec RD: 192.68.0.225:51 mac-ip 101 0050.7966.682e 100.100.2.201
192.68.0.225 - 100 0 65230 65219 65225 i
* RD: 192.68.0.225:51 mac-ip 101 0050.7966.682e 100.100.2.201
192.68.0.225 - 100 0 65241 65229 65220 65225 i
* >Ec RD: 192.68.0.226:54 mac-ip 101 0050.7966.682e 100.100.2.201
192.68.0.226 - 100 0 65229 65220 65226 i
* ec RD: 192.68.0.226:54 mac-ip 101 0050.7966.682e 100.100.2.201
192.68.0.226 - 100 0 65230 65219 65226 i
* RD: 192.68.0.226:54 mac-ip 101 0050.7966.682e 100.100.2.201
192.68.0.226 - 100 0 65241 65229 65220 65226 i
* >Ec RD: 192.68.0.223:56 imet 100 192.68.0.223
192.68.0.223 - 100 0 65229 65220 65223 i
* ec RD: 192.68.0.223:56 imet 100 192.68.0.223
192.68.0.223 - 100 0 65230 65219 65223 i
* RD: 192.68.0.223:56 imet 100 192.68.0.223
192.68.0.223 - 100 0 65241 65229 65220 65223 i
* >Ec RD: 192.68.0.224:51 imet 100 192.68.0.224
192.68.0.224 - 100 0 65229 65220 65224 i
* ec RD: 192.68.0.224:51 imet 100 192.68.0.224
192.68.0.224 - 100 0 65230 65219 65224 i
* RD: 192.68.0.224:51 imet 100 192.68.0.224
192.68.0.224 - 100 0 65241 65229 65220 65224 i
* >Ec RD: 192.68.0.225:51 imet 100 192.68.0.225
192.68.0.225 - 100 0 65229 65220 65225 i
* ec RD: 192.68.0.225:51 imet 100 192.68.0.225
192.68.0.225 - 100 0 65230 65219 65225 i
* RD: 192.68.0.225:51 imet 100 192.68.0.225
192.68.0.225 - 100 0 65241 65229 65220 65225 i
* >Ec RD: 192.68.0.226:54 imet 100 192.68.0.226
192.68.0.226 - 100 0 65229 65220 65226 i
* ec RD: 192.68.0.226:54 imet 100 192.68.0.226
192.68.0.226 - 100 0 65230 65219 65226 i
* RD: 192.68.0.226:54 imet 100 192.68.0.226
192.68.0.226 - 100 0 65241 65229 65220 65226 i
* >Ec RD: 192.68.0.233:54 imet 100 192.68.0.233
192.68.0.233 - 100 0 65230 65233 i
* ec RD: 192.68.0.233:54 imet 100 192.68.0.233
192.68.0.233 - 100 0 65229 65233 i
* RD: 192.68.0.233:54 imet 100 192.68.0.233
192.68.0.233 - 100 0 65241 65230 65233 i
* >Ec RD: 192.68.0.234:51 imet 100 192.68.0.234
192.68.0.234 - 100 0 65229 65234 i
* ec RD: 192.68.0.234:51 imet 100 192.68.0.234
192.68.0.234 - 100 0 65230 65234 i
* RD: 192.68.0.234:51 imet 100 192.68.0.234
192.68.0.234 - 100 0 65241 65229 65234 i
* > RD: 192.68.0.240:100 imet 100 192.68.0.240
- - - 0 i
* > RD: 192.68.0.241:100 imet 100 192.68.0.241
192.68.0.241 - 100 0 65241 i
* Ec RD: 192.68.0.241:100 imet 100 192.68.0.241
192.68.0.241 - 100 0 65229 65241 i
* ec RD: 192.68.0.241:100 imet 100 192.68.0.241
192.68.0.241 - 100 0 65230 65241 i
* >Ec RD: 192.68.0.223:57 imet 101 192.68.0.223
192.68.0.223 - 100 0 65229 65220 65223 i
* ec RD: 192.68.0.223:57 imet 101 192.68.0.223
192.68.0.223 - 100 0 65230 65219 65223 i
* RD: 192.68.0.223:57 imet 101 192.68.0.223
192.68.0.223 - 100 0 65241 65229 65220 65223 i
* >Ec RD: 192.68.0.224:52 imet 101 192.68.0.224
192.68.0.224 - 100 0 65229 65220 65224 i
* ec RD: 192.68.0.224:52 imet 101 192.68.0.224
192.68.0.224 - 100 0 65230 65219 65224 i
* RD: 192.68.0.224:52 imet 101 192.68.0.224
192.68.0.224 - 100 0 65241 65229 65220 65224 i
* >Ec RD: 192.68.0.225:51 imet 101 192.68.0.225
192.68.0.225 - 100 0 65229 65220 65225 i
* ec RD: 192.68.0.225:51 imet 101 192.68.0.225
192.68.0.225 - 100 0 65230 65219 65225 i
* RD: 192.68.0.225:51 imet 101 192.68.0.225
192.68.0.225 - 100 0 65241 65229 65220 65225 i
* >Ec RD: 192.68.0.226:54 imet 101 192.68.0.226
192.68.0.226 - 100 0 65229 65220 65226 i
* ec RD: 192.68.0.226:54 imet 101 192.68.0.226
192.68.0.226 - 100 0 65230 65219 65226 i
* RD: 192.68.0.226:54 imet 101 192.68.0.226
192.68.0.226 - 100 0 65241 65229 65220 65226 i
* >Ec RD: 192.68.0.233:54 imet 101 192.68.0.233
192.68.0.233 - 100 0 65230 65233 i
* ec RD: 192.68.0.233:54 imet 101 192.68.0.233
192.68.0.233 - 100 0 65229 65233 i
* RD: 192.68.0.233:54 imet 101 192.68.0.233
192.68.0.233 - 100 0 65241 65230 65233 i
* >Ec RD: 192.68.0.234:51 imet 101 192.68.0.234
192.68.0.234 - 100 0 65229 65234 i
* ec RD: 192.68.0.234:51 imet 101 192.68.0.234
192.68.0.234 - 100 0 65230 65234 i
* RD: 192.68.0.234:51 imet 101 192.68.0.234
192.68.0.234 - 100 0 65241 65229 65234 i
* >Ec RD: 192.68.0.223:58 imet 200 192.68.0.223
192.68.0.223 - 100 0 65229 65220 65223 i
* ec RD: 192.68.0.223:58 imet 200 192.68.0.223
192.68.0.223 - 100 0 65230 65219 65223 i
* RD: 192.68.0.223:58 imet 200 192.68.0.223
192.68.0.223 - 100 0 65241 65229 65220 65223 i
* >Ec RD: 192.68.0.223:58 imet 201 192.68.0.223
192.68.0.223 - 100 0 65229 65220 65223 i
* ec RD: 192.68.0.223:58 imet 201 192.68.0.223
192.68.0.223 - 100 0 65230 65219 65223 i
* RD: 192.68.0.223:58 imet 201 192.68.0.223
192.68.0.223 - 100 0 65241 65229 65220 65223 i
* >Ec RD: 192.68.0.223:0 ethernet-segment 0000:0500:0000:0001:0000 192.68.0.223
192.68.0.223 - 100 0 65229 65220 65223 i
* ec RD: 192.68.0.223:0 ethernet-segment 0000:0500:0000:0001:0000 192.68.0.223
192.68.0.223 - 100 0 65230 65219 65223 i
* RD: 192.68.0.223:0 ethernet-segment 0000:0500:0000:0001:0000 192.68.0.223
192.68.0.223 - 100 0 65241 65230 65219 65223 i
* >Ec RD: 192.68.0.224:0 ethernet-segment 0000:0500:0000:0001:0000 192.68.0.224
192.68.0.224 - 100 0 65229 65220 65224 i
* ec RD: 192.68.0.224:0 ethernet-segment 0000:0500:0000:0001:0000 192.68.0.224
192.68.0.224 - 100 0 65230 65219 65224 i
* RD: 192.68.0.224:0 ethernet-segment 0000:0500:0000:0001:0000 192.68.0.224
192.68.0.224 - 100 0 65241 65230 65219 65224 i
* >Ec RD: 192.68.0.223:0 ethernet-segment 0000:0500:0000:0001:0100 192.68.0.223
192.68.0.223 - 100 0 65229 65220 65223 i
* ec RD: 192.68.0.223:0 ethernet-segment 0000:0500:0000:0001:0100 192.68.0.223
192.68.0.223 - 100 0 65230 65219 65223 i
* RD: 192.68.0.223:0 ethernet-segment 0000:0500:0000:0001:0100 192.68.0.223
192.68.0.223 - 100 0 65241 65230 65219 65223 i
* >Ec RD: 192.68.0.224:0 ethernet-segment 0000:0500:0000:0001:0100 192.68.0.224
192.68.0.224 - 100 0 65229 65220 65224 i
* ec RD: 192.68.0.224:0 ethernet-segment 0000:0500:0000:0001:0100 192.68.0.224
192.68.0.224 - 100 0 65230 65219 65224 i
* RD: 192.68.0.224:0 ethernet-segment 0000:0500:0000:0001:0100 192.68.0.224
192.68.0.224 - 100 0 65241 65230 65219 65224 i
* >Ec RD: 192.68.0.225:0 ethernet-segment 0000:0500:0000:0002:0000 192.68.0.225
192.68.0.225 - 100 0 65229 65220 65225 i
* ec RD: 192.68.0.225:0 ethernet-segment 0000:0500:0000:0002:0000 192.68.0.225
192.68.0.225 - 100 0 65230 65219 65225 i
* RD: 192.68.0.225:0 ethernet-segment 0000:0500:0000:0002:0000 192.68.0.225
192.68.0.225 - 100 0 65241 65229 65220 65225 i
* >Ec RD: 192.68.0.226:0 ethernet-segment 0000:0500:0000:0002:0000 192.68.0.226
192.68.0.226 - 100 0 65229 65220 65226 i
* ec RD: 192.68.0.226:0 ethernet-segment 0000:0500:0000:0002:0000 192.68.0.226
192.68.0.226 - 100 0 65230 65219 65226 i
* RD: 192.68.0.226:0 ethernet-segment 0000:0500:0000:0002:0000 192.68.0.226
192.68.0.226 - 100 0 65241 65229 65220 65226 i
* >Ec RD: 192.68.0.225:0 ethernet-segment 0000:0500:0000:0002:0100 192.68.0.225
192.68.0.225 - 100 0 65229 65220 65225 i
* ec RD: 192.68.0.225:0 ethernet-segment 0000:0500:0000:0002:0100 192.68.0.225
192.68.0.225 - 100 0 65230 65219 65225 i
* RD: 192.68.0.225:0 ethernet-segment 0000:0500:0000:0002:0100 192.68.0.225
192.68.0.225 - 100 0 65241 65229 65220 65225 i
* >Ec RD: 192.68.0.226:0 ethernet-segment 0000:0500:0000:0002:0100 192.68.0.226
192.68.0.226 - 100 0 65229 65220 65226 i
* ec RD: 192.68.0.226:0 ethernet-segment 0000:0500:0000:0002:0100 192.68.0.226
192.68.0.226 - 100 0 65230 65219 65226 i
* RD: 192.68.0.226:0 ethernet-segment 0000:0500:0000:0002:0100 192.68.0.226
192.68.0.226 - 100 0 65241 65229 65220 65226 i
* >Ec RD: 192.68.0.233:0 ethernet-segment 0000:0500:0000:0003:0000 192.68.0.233
192.68.0.233 - 100 0 65230 65233 i
* ec RD: 192.68.0.233:0 ethernet-segment 0000:0500:0000:0003:0000 192.68.0.233
192.68.0.233 - 100 0 65229 65233 i
* RD: 192.68.0.233:0 ethernet-segment 0000:0500:0000:0003:0000 192.68.0.233
192.68.0.233 - 100 0 65241 65230 65233 i
* >Ec RD: 192.68.0.234:0 ethernet-segment 0000:0500:0000:0003:0000 192.68.0.234
192.68.0.234 - 100 0 65229 65234 i
* ec RD: 192.68.0.234:0 ethernet-segment 0000:0500:0000:0003:0000 192.68.0.234
192.68.0.234 - 100 0 65230 65234 i
* RD: 192.68.0.234:0 ethernet-segment 0000:0500:0000:0003:0000 192.68.0.234
192.68.0.234 - 100 0 65241 65229 65234 i
* >Ec RD: 192.68.0.233:0 ethernet-segment 0000:0500:0000:0003:0100 192.68.0.233
192.68.0.233 - 100 0 65229 65233 i
* ec RD: 192.68.0.233:0 ethernet-segment 0000:0500:0000:0003:0100 192.68.0.233
192.68.0.233 - 100 0 65230 65233 i
* RD: 192.68.0.233:0 ethernet-segment 0000:0500:0000:0003:0100 192.68.0.233
192.68.0.233 - 100 0 65241 65229 65233 i
* >Ec RD: 192.68.0.234:0 ethernet-segment 0000:0500:0000:0003:0100 192.68.0.234
192.68.0.234 - 100 0 65230 65234 i
* ec RD: 192.68.0.234:0 ethernet-segment 0000:0500:0000:0003:0100 192.68.0.234
192.68.0.234 - 100 0 65229 65234 i
* RD: 192.68.0.234:0 ethernet-segment 0000:0500:0000:0003:0100 192.68.0.234
Checking End-to-End connectivity
sclarke@vEX# run ping 100.100.1.1
PING 100.100.1.1 (100.100.1.1): 56 data bytes
64 bytes from 100.100.1.1: icmp_seq=0 ttl=64 time=53.369 ms
sclarke@vEX# run ping 100.100.1.200
PING 100.100.1.200 (100.100.1.200): 56 data bytes
64 bytes from 100.100.1.200: icmp_seq=0 ttl=64 time=11.773 ms
sclarke@vEX# run ping 100.100.1.201
PING 100.100.1.201 (100.100.1.201): 56 data bytes
64 bytes from 100.100.1.201: icmp_seq=0 ttl=64 time=47.996 ms
sclarke@vEX# run ping 100.100.1.202
PING 100.100.1.202 (100.100.1.202): 56 data bytes
64 bytes from 100.100.1.202: icmp_seq=0 ttl=64 time=118.281 ms
sclarke@vEX# run ping 100.100.1.210
PING 100.100.1.210 (100.100.1.210): 56 data bytes
64 bytes from 100.100.1.210: icmp_seq=0 ttl=64 time=62.743 ms
sclarke@vEX# run ping 100.100.1.211
PING 100.100.1.211 (100.100.1.211): 56 data bytes
64 bytes from 100.100.1.211: icmp_seq=0 ttl=64 time=265.838 ms
sclarke@vEX# run ping 100.100.1.212
PING 100.100.1.212 (100.100.1.212): 56 data bytes
64 bytes from 100.100.1.212: icmp_seq=0 ttl=64 time=18.362 ms
sclarke@vEX# run ping 100.100.1.220
PING 100.100.1.220 (100.100.1.220): 56 data bytes
64 bytes from 100.100.1.220: icmp_seq=0 ttl=64 time=515.067 ms
sclarke@vEX# run ping 100.100.1.221
PING 100.100.1.221 (100.100.1.221): 56 data bytes
64 bytes from 100.100.1.221: icmp_seq=0 ttl=64 time=162.957 ms
Free Stuff ! Downloads
