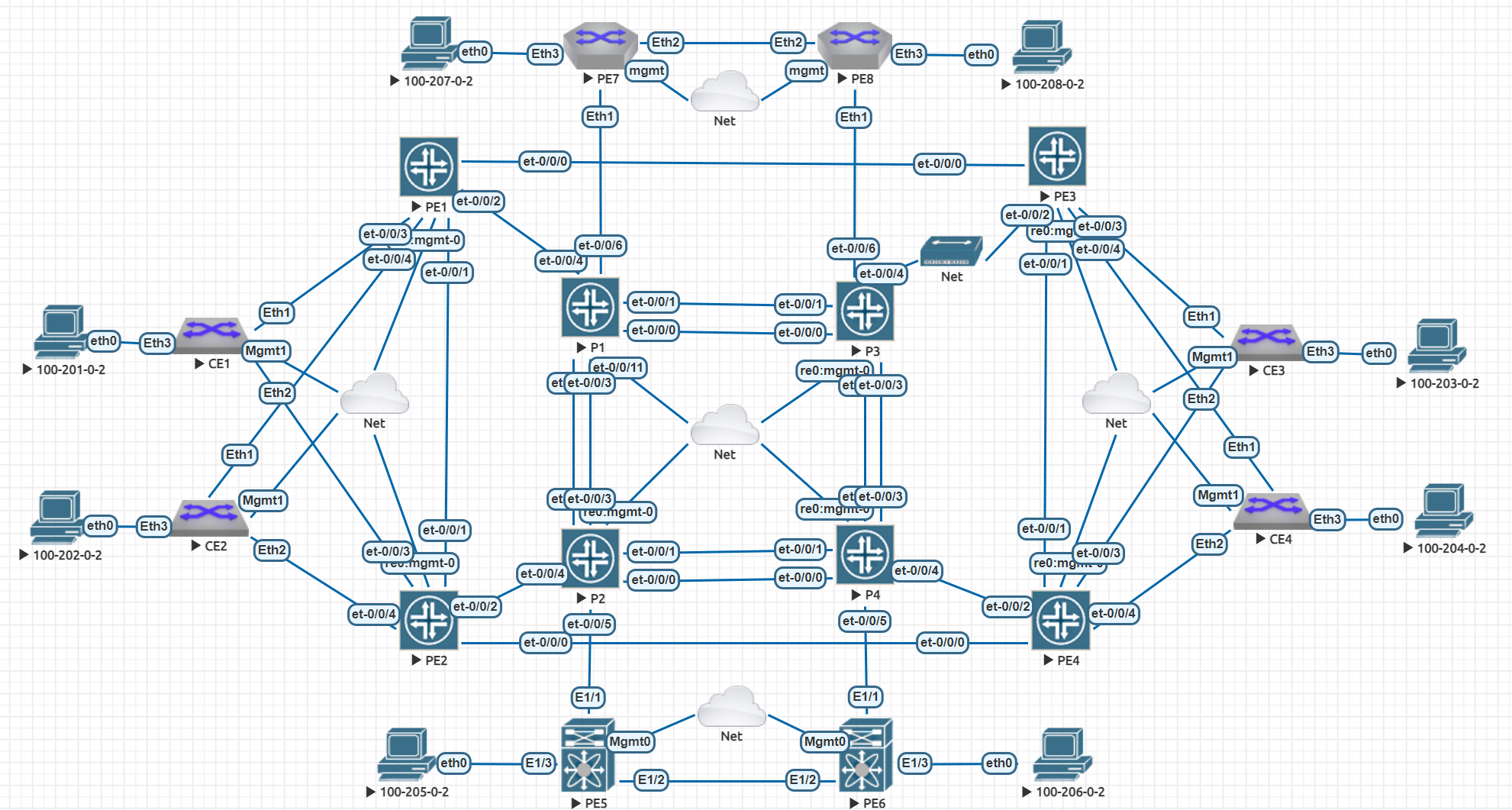

Topology
All devices are virtualised, and built on top of an EVE-NG server
Topology Details
P1 - P2 - P3 - P4 vJUNOS-EVO
PE1-PE2-PE3-PE4 vJUNOS-EVO
PE5 - PE6 vCisco NX9K
PE7 - PE8 Arista vEOS-Router
CE1-CE2-CE3-CE4 Arista vEOS-Switch
Configuration Notes
The P routers here are only MPLS LSR’s.
All P & PE routers use ISIS as the IGP.
The PE’s are the clever one’s doing L3VPN’s, iBGP etc. We start with 10 x L3VPN’s.
CE’s run OSPF for routing redundancy from the PE routing instances. PE’s have policies to export L3VPN BGP routes into OSPF.
The PC’s on each edge are only to test connectivity end-to-end.
The “Net” clouds are the Management LAN
Cisco’s and Arista’s are here for interop fun !
Network Configuration Sheets

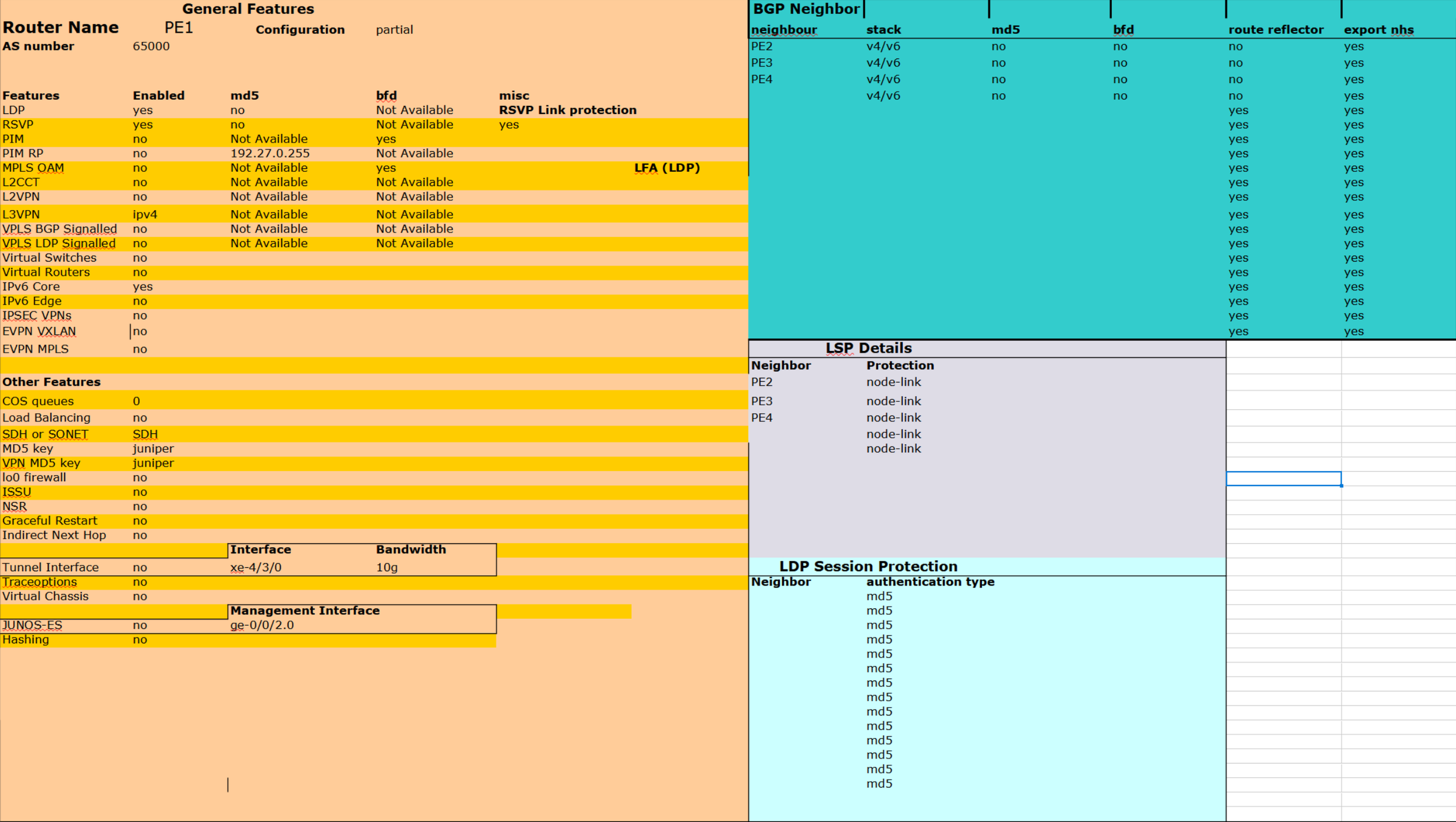

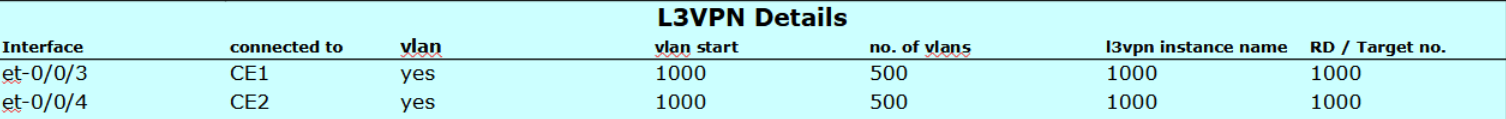

All the input parameters are managed through an Excel spreadsheet. This shows some of the option (there are many others)
How it works
The configbuilder script - written in Perl - pulls in this Excel sheet, understands where the parameters are (and the sheet can expand or contract depending on requirements), and processes every cell.
If it sees a blank line in for instance, the BGP neighbors, then assume no more needed & move onto the next config block.
Each router has it’s own worksheet in the workbook, so once one device is set up, it’s just a matter of copying the sheet and amending the Device Name, IP addresses etc.
$ perl config_builder_eve_1.01.pl
~~~~~~~~~~~~~~~~~~~~~~
device ............... PE1
excel input file ..... eve_v1.1.xls
configuration file ... PE1.script
~~~~~~~~~~~~~~~~~~~~~~
~~~~~~~~~~~~~~~~~~~~~~
device ............... PE2
excel input file ..... eve_v1.1.xls
configuration file ... PE2.script
~~~~~~~~~~~~~~~~~~~~~~
~~~~~~~~~~~~~~~~~~~~~~
device ............... PE3
excel input file ..... eve_v1.1.xls
configuration file ... PE3.script
~~~~~~~~~~~~~~~~~~~~~~
~~~~~~~~~~~~~~~~~~~~~~
device ............... PE4
excel input file ..... eve_v1.1.xls
configuration file ... PE4.script
~~~~~~~~~~~~~~~~~~~~~~
You can then send the configuration files to all devices using Ansible (for example)
$ ansible-playbook SP-push.set.yaml
PLAY [Load merge config] ***********************************************************************************************
TASK [Push config] ***********************************************************************************************
ok: [PE1]
ok: [P2]
ok: [P1]
ok: [P3]
ok: [P4]
ok: [PE3]
ok: [PE2]
ok: [PE4]
PLAY RECAP *************************************************************************************************************
P1 : ok=2 changed=1 unreachable=0 failed=0 skipped=0 rescued=0 ignored=0
P2 : ok=2 changed=1 unreachable=0 failed=0 skipped=0 rescued=0 ignored=0
P3 : ok=2 changed=1 unreachable=0 failed=0 skipped=0 rescued=0 ignored=0
P4 : ok=2 changed=1 unreachable=0 failed=0 skipped=0 rescued=0 ignored=0
PE1 : ok=2 changed=1 unreachable=0 failed=0 skipped=0 rescued=0 ignored=0
PE2 : ok=2 changed=1 unreachable=0 failed=0 skipped=0 rescued=0 ignored=0
PE3 : ok=2 changed=1 unreachable=0 failed=0 skipped=0 rescued=0 ignored=0
PE4 : ok=2 changed=1 unreachable=0 failed=0 skipped=0 rescued=0 ignored=0
Checking the configs with some outputs :
sclarke@PE2-re0> show isis adjacency
Interface System L State Hold (secs) SNPA
et-0/0/0.0 PE4-re0 2 Up 24
et-0/0/1.0 PE1-re0 2 Up 25
et-0/0/2.0 P2-re0 2 Up 26
sclarke@PE2-re0> show bgp summary
Threading mode: BGP I/O
Default eBGP mode: advertise - accept, receive - accept
Groups: 2 Peers: 6 Down peers: 0
Table Tot Paths Act Paths Suppressed History Damp State Pending
inet.0
0 0 0 0 0 0
inet.2
0 0 0 0 0 0
bgp.l3vpn.0
106 106 0 0 0 0
inet6.0
0 0 0 0 0 0
Peer AS InPkt OutPkt OutQ Flaps Last Up/Dwn State|#Active/Received/Accepted/Damped..
192.68.0.205 65000 69 66 0 0 23:31 Establ
inet.0: 0/0/0/0
inet.2: 0/0/0/0
bgp.l3vpn.0: 36/36/36/0
L3VPN-1000.inet.0: 0/9/9/0
L3VPN-1001.inet.0: 3/3/3/0
L3VPN-1002.inet.0: 3/3/3/0
L3VPN-1003.inet.0: 3/3/3/0
L3VPN-1004.inet.0: 3/3/3/0
L3VPN-1005.inet.0: 3/3/3/0
L3VPN-1006.inet.0: 3/3/3/0
L3VPN-1007.inet.0: 3/3/3/0
L3VPN-1008.inet.0: 3/3/3/0
L3VPN-1009.inet.0: 3/3/3/0
192.68.0.207 65000 66 65 0 0 23:25 Establ
inet.0: 0/0/0/0
inet.2: 0/0/0/0
bgp.l3vpn.0: 35/35/35/0
L3VPN-1000.inet.0: 3/8/8/0
L3VPN-1001.inet.0: 3/3/3/0
L3VPN-1002.inet.0: 3/3/3/0
L3VPN-1003.inet.0: 3/3/3/0
L3VPN-1004.inet.0: 3/3/3/0
L3VPN-1005.inet.0: 3/3/3/0
L3VPN-1006.inet.0: 3/3/3/0
L3VPN-1007.inet.0: 3/3/3/0
L3VPN-1008.inet.0: 3/3/3/0
L3VPN-1009.inet.0: 3/3/3/0
192.68.0.208 65000 67 65 0 0 23:34 Establ
inet.0: 0/0/0/0
inet.2: 0/0/0/0
bgp.l3vpn.0: 35/35/35/0
L3VPN-1000.inet.0: 5/8/8/0
L3VPN-1001.inet.0: 3/3/3/0
L3VPN-1002.inet.0: 3/3/3/0
L3VPN-1003.inet.0: 3/3/3/0
L3VPN-1004.inet.0: 3/3/3/0
L3VPN-1005.inet.0: 3/3/3/0
L3VPN-1006.inet.0: 3/3/3/0
L3VPN-1007.inet.0: 3/3/3/0
L3VPN-1008.inet.0: 3/3/3/0
L3VPN-1009.inet.0: 3/3/3/0
::192:68:0:205 65000 54 52 0 0 23:34 Establ
inet6.0: 0/0/0/0
::192:68:0:207 65000 54 52 0 0 23:46 Establ
inet6.0: 0/0/0/0
::192:68:0:208 65000 54 53 0 0 23:50 Establ
inet6.0: 0/0/0/0
sclarke@PE2-re0> show rsvp neighbor
RSVP neighbor: 9 learned
Address Idle Up/Dn LastChange HelloInt HelloTx/Rx MsgRcvd
192.68.0.201 0 1/0 22:56 9 153/153 3
192.68.0.202 0 1/0 22:57 9 153/153 0
192.68.0.204 0 1/0 22:11 9 149/149 0
192.68.0.205 0 1/0 23:16 9 157/157 3
192.68.0.207 0 1/0 23:25 9 154/154 0
192.68.0.208 0 1/0 24:00 9 150/150 0
10.206.208.2 0 1/0 24:30 9 163/163 178
10.205.206.1 0 2/1 22:47 9 92/92 158
10.202.206.1 0 1/0 24:22 9 164/163 103
sclarke@PE2-re0> show mpls lsp
Ingress LSP: 3 sessions
To From State Rt P ActivePath LSPname
192.68.0.205 192.68.0.206 Up 0 * PE2-->PE1
192.68.0.207 192.68.0.206 Up 0 * PE2-->PE3
192.68.0.208 192.68.0.206 Up 0 * PE2-->PE4
Total 3 displayed, Up 3, Down 0
Egress LSP: 7 sessions
To From State Rt Style Labelin Labelout LSPname
192.68.0.206 192.68.0.202 Up 0 1 SE 3 - Bypass->10.202.206.2
192.68.0.206 192.68.0.208 Up 0 1 SE 3 - PE4-->PE2
192.68.0.206 192.68.0.201 Up 0 1 SE 3 - Bypass->10.201.202.2->10.202.206.2
192.68.0.206 192.68.0.205 Up 0 1 SE 3 - PE1-->PE2
192.68.0.206 192.68.0.205 Up 0 1 SE 3 - Bypass->10.205.206.2
192.68.0.206 192.68.0.207 Up 0 1 SE 3 - PE3-->PE2
192.68.0.206 192.68.0.204 Up 0 1 SE 3 - Bypass->10.202.204.1->10.202.206.2
Total 7 displayed, Up 7, Down 0
Transit LSP: 6 sessions
To From State Rt Style Labelin Labelout LSPname
192.68.0.202 192.68.0.208 Up 0 1 SE 46 3 Bypass->10.204.208.1->10.202.204.1
192.68.0.202 192.68.0.205 Up 0 1 SE 47 3 Bypass->10.201.205.1->10.201.202.2
192.68.0.203 192.68.0.205 Up 0 1 SE 50 37 Bypass->10.205.207.2->10.203.207.1
192.68.0.205 192.68.0.202 Up 0 1 SE 45 3 Bypass->10.201.202.1->10.201.205.2
192.68.0.207 192.68.0.205 Up 0 1 SE 44 45 Bypass->10.205.207.2
192.68.0.208 192.68.0.202 Up 0 1 SE 48 3 Bypass->10.202.204.2->10.204.208.2
Total 6 displayed, Up 6, Down 0
PING Tests
Checking end to end connectivity from VPC1 (100.201.0.2) attached to CE1
VPC1> ping 100.201.0.1 -c 2 # Local CE1 interface
84 bytes from 100.201.0.1 icmp_seq=1 ttl=64 time=1.956 ms
84 bytes from 100.201.0.1 icmp_seq=2 ttl=64 time=1.810 ms
VPC1> ping 100.202.0.2 -c 2 # Attached to CE2
84 bytes from 100.202.0.2 icmp_seq=1 ttl=61 time=7.417 ms
84 bytes from 100.202.0.2 icmp_seq=2 ttl=61 time=7.762 ms
VPC1> ping 100.203.0.2 -c 2 # Attached to CE3
84 bytes from 100.203.0.2 icmp_seq=1 ttl=60 time=31.141 ms
84 bytes from 100.203.0.2 icmp_seq=2 ttl=60 time=15.817 ms
VPC1> ping 100.204.0.2 -c 2 # Attached to CE4
84 bytes from 100.204.0.2 icmp_seq=1 ttl=60 time=39.725 ms
84 bytes from 100.204.0.2 icmp_seq=2 ttl=60 time=16.637 ms
From CE1’s point of view
CE1#show ip route
VRF: default
Gateway of last resort is not set
C 100.101.0.0/24 is directly connected, Ethernet1.1000
O 100.102.0.0/24 [110/11] via 100.101.0.1, Ethernet1.1000
C 100.103.0.0/24 is directly connected, Ethernet2.1000
O 100.104.0.0/24 [110/11] via 100.103.0.1, Ethernet2.1000
O E2 100.105.0.0/24 [110/0] via 100.101.0.1, Ethernet1.1000
via 100.103.0.1, Ethernet2.1000
O E2 100.106.0.0/24 [110/0] via 100.101.0.1, Ethernet1.1000
via 100.103.0.1, Ethernet2.1000
O E2 100.107.0.0/24 [110/0] via 100.101.0.1, Ethernet1.1000
via 100.103.0.1, Ethernet2.1000
O E2 100.108.0.0/24 [110/0] via 100.101.0.1, Ethernet1.1000
via 100.103.0.1, Ethernet2.1000
C 100.201.0.0/24 is directly connected, Ethernet3
O 100.202.0.0/24 [110/21] via 100.101.0.1, Ethernet1.1000
via 100.103.0.1, Ethernet2.1000
O IA 100.203.0.0/24 [110/21] via 100.101.0.1, Ethernet1.1000
via 100.103.0.1, Ethernet2.1000
O IA 100.204.0.0/24 [110/21] via 100.101.0.1, Ethernet1.1000
via 100.103.0.1, Ethernet2.1000
O 192.68.0.205/32 [110/10] via 100.101.0.1, Ethernet1.1000
O 192.68.0.206/32 [110/10] via 100.103.0.1, Ethernet2.1000
O E2 192.68.0.207/32 [110/0] via 100.101.0.1, Ethernet1.1000
via 100.103.0.1, Ethernet2.1000
O E2 192.68.0.208/32 [110/0] via 100.101.0.1, Ethernet1.1000
via 100.103.0.1, Ethernet2.1000
C 192.68.0.211/32 is directly connected, Loopback0 ## CE1 loopback
O 192.68.0.212/32 [110/21] via 100.101.0.1, Ethernet1.1000 ## CE2 loopback
via 100.103.0.1, Ethernet2.1000
O IA 192.68.0.213/32 [110/21] via 100.101.0.1, Ethernet1.1000 ## CE3 loopback
via 100.103.0.1, Ethernet2.1000
O IA 192.68.0.214/32 [110/21] via 100.101.0.1, Ethernet1.1000 ## CE4 loopback
via 100.103.0.1, Ethernet2.1000
C 192.168.68.0/24 is directly connected, Management1
sclarke@PE2-re0> show route table L3VPN-1000
L3VPN-1000.inet.0: 20 destinations, 37 routes (20 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both
100.101.0.0/24 *[OSPF/10] 00:28:28, metric 11
> to 100.103.0.2 via et-0/0/3.1000
[BGP/170] 00:12:02, localpref 100, from 192.68.0.205
AS path: I, validation-state: unverified
> to 10.202.206.1 via et-0/0/2.0, label-switched-path PE2-->PE1
to 10.205.206.1 via et-0/0/1.0, label-switched-path Bypass->10.202.206.1->10.201.202.1
100.102.0.0/24 *[OSPF/10] 00:28:01, metric 11
> to 100.104.0.2 via et-0/0/4.1000
[BGP/170] 00:12:02, localpref 100, from 192.68.0.205
AS path: I, validation-state: unverified
> to 10.202.206.1 via et-0/0/2.0, label-switched-path PE2-->PE1
to 10.205.206.1 via et-0/0/1.0, label-switched-path Bypass->10.202.206.1->10.201.202.1
100.103.0.0/24 *[Direct/0] 00:28:42
> via et-0/0/3.1000
[BGP/170] 00:12:02, MED 11, localpref 100, from 192.68.0.205
AS path: I, validation-state: unverified
> to 10.202.206.1 via et-0/0/2.0, label-switched-path PE2-->PE1
to 10.205.206.1 via et-0/0/1.0, label-switched-path Bypass->10.202.206.1->10.201.202.1
100.103.0.1/32 *[Local/0] 00:28:42
Local via et-0/0/3.1000
100.104.0.0/24 *[Direct/0] 00:28:43
> via et-0/0/4.1000
[BGP/170] 00:12:02, MED 11, localpref 100, from 192.68.0.205
AS path: I, validation-state: unverified
> to 10.202.206.1 via et-0/0/2.0, label-switched-path PE2-->PE1
to 10.205.206.1 via et-0/0/1.0, label-switched-path Bypass->10.202.206.1->10.201.202.1
100.104.0.1/32 *[Local/0] 00:28:43
Local via et-0/0/4.1000
100.105.0.0/24 *[BGP/170] 00:26:57, localpref 100, from 192.68.0.207
AS path: I, validation-state: unverified
> to 10.202.206.1 via et-0/0/2.0, label-switched-path PE2-->PE3
to 10.206.208.2 via et-0/0/0.0, label-switched-path Bypass->10.202.206.1->10.202.204.2
[BGP/170] 00:26:52, MED 11, localpref 100, from 192.68.0.208
AS path: I, validation-state: unverified
> to 10.202.206.1 via et-0/0/2.0, label-switched-path PE2-->PE4
to 10.206.208.2 via et-0/0/0.0, label-switched-path Bypass->10.202.206.1->10.202.204.2
100.106.0.0/24 *[BGP/170] 00:26:57, localpref 100, from 192.68.0.207
AS path: I, validation-state: unverified
> to 10.202.206.1 via et-0/0/2.0, label-switched-path PE2-->PE3
to 10.206.208.2 via et-0/0/0.0, label-switched-path Bypass->10.202.206.1->10.202.204.2
[BGP/170] 00:26:52, MED 11, localpref 100, from 192.68.0.208
AS path: I, validation-state: unverified
> to 10.202.206.1 via et-0/0/2.0, label-switched-path PE2-->PE4
to 10.206.208.2 via et-0/0/0.0, label-switched-path Bypass->10.202.206.1->10.202.204.2
100.107.0.0/24 *[BGP/170] 00:26:52, localpref 100, from 192.68.0.208
AS path: I, validation-state: unverified
> to 10.202.206.1 via et-0/0/2.0, label-switched-path PE2-->PE4
to 10.206.208.2 via et-0/0/0.0, label-switched-path Bypass->10.202.206.1->10.202.204.2
[BGP/170] 00:26:57, MED 11, localpref 100, from 192.68.0.207
AS path: I, validation-state: unverified
> to 10.202.206.1 via et-0/0/2.0, label-switched-path PE2-->PE3
to 10.206.208.2 via et-0/0/0.0, label-switched-path Bypass->10.202.206.1->10.202.204.2
100.108.0.0/24 *[BGP/170] 00:26:52, localpref 100, from 192.68.0.208
AS path: I, validation-state: unverified
> to 10.202.206.1 via et-0/0/2.0, label-switched-path PE2-->PE4
to 10.206.208.2 via et-0/0/0.0, label-switched-path Bypass->10.202.206.1->10.202.204.2
[BGP/170] 00:26:57, MED 11, localpref 100, from 192.68.0.207
AS path: I, validation-state: unverified
> to 10.202.206.1 via et-0/0/2.0, label-switched-path PE2-->PE3
to 10.206.208.2 via et-0/0/0.0, label-switched-path Bypass->10.202.206.1->10.202.204.2
100.201.0.0/24 *[OSPF/10] 00:28:28, metric 11
> to 100.103.0.2 via et-0/0/3.1000
[BGP/170] 00:12:02, MED 11, localpref 100, from 192.68.0.205
AS path: I, validation-state: unverified
> to 10.202.206.1 via et-0/0/2.0, label-switched-path PE2-->PE1
to 10.205.206.1 via et-0/0/1.0, label-switched-path Bypass->10.202.206.1->10.201.202.1
100.202.0.0/24 *[OSPF/10] 00:28:01, metric 11
> to 100.104.0.2 via et-0/0/4.1000
[BGP/170] 00:12:02, MED 11, localpref 100, from 192.68.0.205
AS path: I, validation-state: unverified
> to 10.202.206.1 via et-0/0/2.0, label-switched-path PE2-->PE1
to 10.205.206.1 via et-0/0/1.0, label-switched-path Bypass->10.202.206.1->10.201.202.1
100.203.0.0/24 *[BGP/170] 00:26:52, MED 11, localpref 100, from 192.68.0.208
AS path: I, validation-state: unverified
> to 10.202.206.1 via et-0/0/2.0, label-switched-path PE2-->PE4
to 10.206.208.2 via et-0/0/0.0, label-switched-path Bypass->10.202.206.1->10.202.204.2
[BGP/170] 00:26:57, MED 11, localpref 100, from 192.68.0.207
AS path: I, validation-state: unverified
> to 10.202.206.1 via et-0/0/2.0, label-switched-path PE2-->PE3
to 10.206.208.2 via et-0/0/0.0, label-switched-path Bypass->10.202.206.1->10.202.204.2
100.204.0.0/24 *[BGP/170] 00:26:52, MED 11, localpref 100, from 192.68.0.208
AS path: I, validation-state: unverified
> to 10.202.206.1 via et-0/0/2.0, label-switched-path PE2-->PE4
to 10.206.208.2 via et-0/0/0.0, label-switched-path Bypass->10.202.206.1->10.202.204.2
[BGP/170] 00:26:57, MED 11, localpref 100, from 192.68.0.207
AS path: I, validation-state: unverified
> to 10.202.206.1 via et-0/0/2.0, label-switched-path PE2-->PE3
to 10.206.208.2 via et-0/0/0.0, label-switched-path Bypass->10.202.206.1->10.202.204.2
192.68.0.205/32 *[OSPF/10] 00:27:24, metric 11
to 100.104.0.2 via et-0/0/4.1000
> to 100.103.0.2 via et-0/0/3.1000
[BGP/170] 00:12:02, localpref 100, from 192.68.0.205
AS path: I, validation-state: unverified
> to 10.202.206.1 via et-0/0/2.0, label-switched-path PE2-->PE1
to 10.205.206.1 via et-0/0/1.0, label-switched-path Bypass->10.202.206.1->10.201.202.1
192.68.0.206/32 *[Direct/0] 00:29:36
> via lo0.1000
[BGP/170] 00:12:02, MED 11, localpref 100, from 192.68.0.205
AS path: I, validation-state: unverified
> to 10.202.206.1 via et-0/0/2.0, label-switched-path PE2-->PE1
to 10.205.206.1 via et-0/0/1.0, label-switched-path Bypass->10.202.206.1->10.201.202.1
192.68.0.207/32 *[BGP/170] 00:26:57, localpref 100, from 192.68.0.207
AS path: I, validation-state: unverified
> to 10.202.206.1 via et-0/0/2.0, label-switched-path PE2-->PE3
to 10.206.208.2 via et-0/0/0.0, label-switched-path Bypass->10.202.206.1->10.202.204.2
[BGP/170] 00:26:52, MED 11, localpref 100, from 192.68.0.208
AS path: I, validation-state: unverified
> to 10.202.206.1 via et-0/0/2.0, label-switched-path PE2-->PE4
to 10.206.208.2 via et-0/0/0.0, label-switched-path Bypass->10.202.206.1->10.202.204.2
192.68.0.208/32 *[BGP/170] 00:26:52, localpref 100, from 192.68.0.208
AS path: I, validation-state: unverified
> to 10.202.206.1 via et-0/0/2.0, label-switched-path PE2-->PE4
to 10.206.208.2 via et-0/0/0.0, label-switched-path Bypass->10.202.206.1->10.202.204.2
[BGP/170] 00:26:57, MED 11, localpref 100, from 192.68.0.207
AS path: I, validation-state: unverified
> to 10.202.206.1 via et-0/0/2.0, label-switched-path PE2-->PE3
to 10.206.208.2 via et-0/0/0.0, label-switched-path Bypass->10.202.206.1->10.202.204.2
192.68.0.211/32 *[OSPF/10] 00:28:28, metric 11
> to 100.103.0.2 via et-0/0/3.1000
[BGP/170] 00:12:02, MED 11, localpref 100, from 192.68.0.205
AS path: I, validation-state: unverified
> to 10.202.206.1 via et-0/0/2.0, label-switched-path PE2-->PE1
to 10.205.206.1 via et-0/0/1.0, label-switched-path Bypass->10.202.206.1->10.201.202.1
224.0.0.5/32 *[OSPF/10] 00:29:38, metric 1
MultiRecv
Scaling Up !
Bored with only 10 L3VPN’s ? Why not do 500 instead, simply by amending the numbers in the Excel sheet - see no. of vlans here is increased to 500. Run the script again and send the new configs to each device.
Checking with PE2
sclarke@PE2-re0# run show bgp summary
Threading mode: BGP I/O
Default eBGP mode: advertise - accept, receive - accept
Groups: 2 Peers: 6 Down peers: 0
Table Tot Paths Act Paths Suppressed History Damp State Pending
inet.0
0 0 0 0 0 0
inet.2
0 0 0 0 0 0
bgp.l3vpn.0
4582 4582 0 0 0 0
inet6.0
0 0 0 0 0 0
Peer AS InPkt OutPkt OutQ Flaps Last Up/Dwn State|#Active/Received/Accepted/Damped...
192.68.0.205 65000 509 508 0 0 1:06 Establ
inet.0: 0/0/0/0
inet.2: 0/0/0/0
bgp.l3vpn.0: 1528/1528/1528/0
L3VPN-1000.inet.0: 0/13/13/0
L3VPN-1001.inet.0: 5/5/5/0
L3VPN-1002.inet.0: 5/5/5/0
L3VPN-1003.inet.0: 5/5/5/0
L3VPN-1004.inet.0: 5/5/5/0
L3VPN-1005.inet.0: 5/5/5/0
L3VPN-1006.inet.0: 5/5/5/0
L3VPN-1007.inet.0: 5/5/5/0
L3VPN-1008.inet.0: 5/5/5/0
L3VPN-1009.inet.0: 5/5/5/0
L3VPN-1010.inet.0: 3/3/3/0
L3VPN-1011.inet.0: 3/3/3/0
L3VPN-1012.inet.0: 3/3/3/0
L3VPN-1013.inet.0: 3/3/3/0
L3VPN-1014.inet.0: 3/3/3/0
L3VPN-1015.inet.0: 3/3/3/0
L3VPN-1016.inet.0: 3/3/3/0
L3VPN-1017.inet.0: 3/3/3/0
L3VPN-1018.inet.0: 3/3/3/0
L3VPN-1019.inet.0: 3/3/3/0
L3VPN-1020.inet.0: 3/3/3/0
L3VPN-1021.inet.0: 3/3/3/0
L3VPN-1022.inet.0: 3/3/3/0
L3VPN-1023.inet.0: 3/3/3/0
L3VPN-1024.inet.0: 3/3/3/0
L3VPN-1025.inet.0: 3/3/3/0
L3VPN-1026.inet.0: 3/3/3/0
L3VPN-1027.inet.0: 3/3/3/0
L3VPN-1028.inet.0: 3/3/3/0
L3VPN-1029.inet.0: 3/3/3/0
L3VPN-1030.inet.0: 3/3/3/0
L3VPN-1031.inet.0: 3/3/3/0
L3VPN-1032.inet.0: 3/3/3/0
L3VPN-1033.inet.0: 3/3/3/0
L3VPN-1034.inet.0: 3/3/3/0
L3VPN-1035.inet.0: 3/3/3/0
L3VPN-1036.inet.0: 3/3/3/0
L3VPN-1037.inet.0: 3/3/3/0
L3VPN-1038.inet.0: 3/3/3/0
L3VPN-1039.inet.0: 3/3/3/0
L3VPN-1040.inet.0: 3/3/3/0
L3VPN-1041.inet.0: 3/3/3/0
L3VPN-1042.inet.0: 3/3/3/0
L3VPN-1043.inet.0: 3/3/3/0
L3VPN-1044.inet.0: 3/3/3/0
L3VPN-1045.inet.0: 3/3/3/0
L3VPN-1046.inet.0: 3/3/3/0
L3VPN-1047.inet.0: 3/3/3/0
L3VPN-1048.inet.0: 3/3/3/0
L3VPN-1049.inet.0: 3/3/3/0
L3VPN-1050.inet.0: 3/3/3/0
L3VPN-1051.inet.0: 3/3/3/0
L3VPN-1052.inet.0: 3/3/3/0
L3VPN-1053.inet.0: 3/3/3/0
L3VPN-1054.inet.0: 3/3/3/0
L3VPN-1055.inet.0: 3/3/3/0
L3VPN-1056.inet.0: 3/3/3/0
L3VPN-1057.inet.0: 3/3/3/0
L3VPN-1058.inet.0: 3/3/3/0
L3VPN-1059.inet.0: 3/3/3/0
L3VPN-1060.inet.0: 3/3/3/0
L3VPN-1061.inet.0: 3/3/3/0
L3VPN-1062.inet.0: 3/3/3/0
L3VPN-1063.inet.0: 3/3/3/0
L3VPN-1064.inet.0: 3/3/3/0
L3VPN-1065.inet.0: 3/3/3/0
L3VPN-1066.inet.0: 3/3/3/0
L3VPN-1067.inet.0: 3/3/3/0
L3VPN-1068.inet.0: 3/3/3/0
L3VPN-1069.inet.0: 3/3/3/0
L3VPN-1070.inet.0: 3/3/3/0
L3VPN-1071.inet.0: 3/3/3/0
L3VPN-1072.inet.0: 3/3/3/0
L3VPN-1073.inet.0: 3/3/3/0
L3VPN-1074.inet.0: 3/3/3/0
L3VPN-1075.inet.0: 3/3/3/0
L3VPN-1076.inet.0: 3/3/3/0
L3VPN-1077.inet.0: 3/3/3/0
L3VPN-1078.inet.0: 3/3/3/0
L3VPN-1079.inet.0: 3/3/3/0
L3VPN-1080.inet.0: 3/3/3/0
L3VPN-1081.inet.0: 3/3/3/0
L3VPN-1082.inet.0: 3/3/3/0
L3VPN-1083.inet.0: 3/3/3/0
L3VPN-1084.inet.0: 3/3/3/0
L3VPN-1085.inet.0: 3/3/3/0
L3VPN-1086.inet.0: 3/3/3/0
L3VPN-1087.inet.0: 3/3/3/0
L3VPN-1088.inet.0: 3/3/3/0
L3VPN-1089.inet.0: 3/3/3/0
L3VPN-1090.inet.0: 3/3/3/0
L3VPN-1091.inet.0: 3/3/3/0
L3VPN-1092.inet.0: 3/3/3/0
L3VPN-1093.inet.0: 3/3/3/0
L3VPN-1094.inet.0: 3/3/3/0
L3VPN-1095.inet.0: 3/3/3/0
L3VPN-1096.inet.0: 3/3/3/0
L3VPN-1097.inet.0: 3/3/3/0
L3VPN-1098.inet.0: 3/3/3/0
L3VPN-1099.inet.0: 3/3/3/0
L3VPN-1100.inet.0: 3/3/3/0
L3VPN-1101.inet.0: 3/3/3/0
L3VPN-1102.inet.0: 3/3/3/0
L3VPN-1103.inet.0: 3/3/3/0
L3VPN-1104.inet.0: 3/3/3/0
L3VPN-1105.inet.0: 3/3/3/0
L3VPN-1106.inet.0: 3/3/3/0
L3VPN-1107.inet.0: 3/3/3/0
L3VPN-1108.inet.0: 3/3/3/0
L3VPN-1109.inet.0: 3/3/3/0
L3VPN-1110.inet.0: 3/3/3/0
L3VPN-1111.inet.0: 3/3/3/0
L3VPN-1112.inet.0: 3/3/3/0
L3VPN-1113.inet.0: 3/3/3/0
L3VPN-1114.inet.0: 3/3/3/0
L3VPN-1115.inet.0: 3/3/3/0
L3VPN-1116.inet.0: 3/3/3/0
L3VPN-1117.inet.0: 3/3/3/0
L3VPN-1118.inet.0: 3/3/3/0
L3VPN-1119.inet.0: 3/3/3/0
L3VPN-1120.inet.0: 3/3/3/0
L3VPN-1121.inet.0: 3/3/3/0
L3VPN-1122.inet.0: 3/3/3/0
L3VPN-1123.inet.0: 3/3/3/0
L3VPN-1124.inet.0: 3/3/3/0
L3VPN-1125.inet.0: 3/3/3/0
L3VPN-1126.inet.0: 3/3/3/0
L3VPN-1127.inet.0: 3/3/3/0
L3VPN-1128.inet.0: 3/3/3/0
L3VPN-1129.inet.0: 3/3/3/0
L3VPN-1130.inet.0: 3/3/3/0
L3VPN-1131.inet.0: 3/3/3/0
L3VPN-1132.inet.0: 3/3/3/0
L3VPN-1133.inet.0: 3/3/3/0
L3VPN-1134.inet.0: 3/3/3/0
L3VPN-1135.inet.0: 3/3/3/0
L3VPN-1136.inet.0: 3/3/3/0
L3VPN-1137.inet.0: 3/3/3/0
L3VPN-1138.inet.0: 3/3/3/0
L3VPN-1139.inet.0: 3/3/3/0
L3VPN-1140.inet.0: 3/3/3/0
L3VPN-1141.inet.0: 3/3/3/0
L3VPN-1142.inet.0: 3/3/3/0
L3VPN-1143.inet.0: 3/3/3/0
L3VPN-1144.inet.0: 3/3/3/0
L3VPN-1145.inet.0: 3/3/3/0
L3VPN-1146.inet.0: 3/3/3/0
L3VPN-1147.inet.0: 3/3/3/0
L3VPN-1148.inet.0: 3/3/3/0
L3VPN-1149.inet.0: 3/3/3/0
L3VPN-1150.inet.0: 3/3/3/0
L3VPN-1151.inet.0: 3/3/3/0
L3VPN-1152.inet.0: 3/3/3/0
L3VPN-1153.inet.0: 3/3/3/0
L3VPN-1154.inet.0: 3/3/3/0
L3VPN-1155.inet.0: 3/3/3/0
L3VPN-1156.inet.0: 3/3/3/0
L3VPN-1157.inet.0: 3/3/3/0
L3VPN-1158.inet.0: 3/3/3/0
L3VPN-1159.inet.0: 3/3/3/0
L3VPN-1160.inet.0: 3/3/3/0
L3VPN-1161.inet.0: 3/3/3/0
L3VPN-1162.inet.0: 3/3/3/0
L3VPN-1163.inet.0: 3/3/3/0
L3VPN-1164.inet.0: 3/3/3/0
L3VPN-1165.inet.0: 3/3/3/0
L3VPN-1166.inet.0: 3/3/3/0
L3VPN-1167.inet.0: 3/3/3/0
L3VPN-1168.inet.0: 3/3/3/0
L3VPN-1169.inet.0: 3/3/3/0
L3VPN-1170.inet.0: 3/3/3/0
L3VPN-1171.inet.0: 3/3/3/0
L3VPN-1172.inet.0: 3/3/3/0
L3VPN-1173.inet.0: 3/3/3/0
L3VPN-1174.inet.0: 3/3/3/0
L3VPN-1175.inet.0: 3/3/3/0
L3VPN-1176.inet.0: 3/3/3/0
L3VPN-1177.inet.0: 3/3/3/0
L3VPN-1178.inet.0: 3/3/3/0
L3VPN-1179.inet.0: 3/3/3/0
L3VPN-1180.inet.0: 3/3/3/0
L3VPN-1181.inet.0: 3/3/3/0
L3VPN-1182.inet.0: 3/3/3/0
L3VPN-1183.inet.0: 3/3/3/0
L3VPN-1184.inet.0: 3/3/3/0
L3VPN-1185.inet.0: 3/3/3/0
L3VPN-1186.inet.0: 3/3/3/0
L3VPN-1187.inet.0: 3/3/3/0
L3VPN-1188.inet.0: 3/3/3/0
L3VPN-1189.inet.0: 3/3/3/0
L3VPN-1190.inet.0: 3/3/3/0
L3VPN-1191.inet.0: 3/3/3/0
L3VPN-1192.inet.0: 3/3/3/0
L3VPN-1193.inet.0: 3/3/3/0
L3VPN-1194.inet.0: 3/3/3/0
L3VPN-1195.inet.0: 3/3/3/0
L3VPN-1196.inet.0: 3/3/3/0
L3VPN-1197.inet.0: 3/3/3/0
L3VPN-1198.inet.0: 3/3/3/0
L3VPN-1199.inet.0: 3/3/3/0
L3VPN-1200.inet.0: 3/3/3/0
L3VPN-1201.inet.0: 3/3/3/0
L3VPN-1202.inet.0: 3/3/3/0
L3VPN-1203.inet.0: 3/3/3/0
L3VPN-1204.inet.0: 3/3/3/0
L3VPN-1205.inet.0: 3/3/3/0
L3VPN-1206.inet.0: 3/3/3/0
L3VPN-1207.inet.0: 3/3/3/0
L3VPN-1208.inet.0: 3/3/3/0
L3VPN-1209.inet.0: 3/3/3/0
L3VPN-1210.inet.0: 3/3/3/0
L3VPN-1211.inet.0: 3/3/3/0
L3VPN-1212.inet.0: 3/3/3/0
L3VPN-1213.inet.0: 3/3/3/0
L3VPN-1214.inet.0: 3/3/3/0
L3VPN-1215.inet.0: 3/3/3/0
L3VPN-1216.inet.0: 3/3/3/0
L3VPN-1217.inet.0: 3/3/3/0
L3VPN-1218.inet.0: 3/3/3/0
L3VPN-1219.inet.0: 3/3/3/0
L3VPN-1220.inet.0: 3/3/3/0
L3VPN-1221.inet.0: 3/3/3/0
L3VPN-1222.inet.0: 3/3/3/0
L3VPN-1223.inet.0: 3/3/3/0
L3VPN-1224.inet.0: 3/3/3/0
L3VPN-1225.inet.0: 3/3/3/0
L3VPN-1226.inet.0: 3/3/3/0
L3VPN-1227.inet.0: 3/3/3/0
L3VPN-1228.inet.0: 3/3/3/0
L3VPN-1229.inet.0: 3/3/3/0
L3VPN-1230.inet.0: 3/3/3/0
L3VPN-1231.inet.0: 3/3/3/0
L3VPN-1232.inet.0: 3/3/3/0
L3VPN-1233.inet.0: 3/3/3/0
L3VPN-1234.inet.0: 3/3/3/0
L3VPN-1235.inet.0: 3/3/3/0
L3VPN-1236.inet.0: 3/3/3/0
L3VPN-1237.inet.0: 3/3/3/0
L3VPN-1238.inet.0: 3/3/3/0
L3VPN-1239.inet.0: 3/3/3/0
L3VPN-1240.inet.0: 3/3/3/0
L3VPN-1241.inet.0: 3/3/3/0
L3VPN-1242.inet.0: 3/3/3/0
L3VPN-1243.inet.0: 3/3/3/0
L3VPN-1244.inet.0: 3/3/3/0
L3VPN-1245.inet.0: 3/3/3/0
L3VPN-1246.inet.0: 3/3/3/0
L3VPN-1247.inet.0: 3/3/3/0
L3VPN-1248.inet.0: 3/3/3/0
L3VPN-1249.inet.0: 3/3/3/0
L3VPN-1250.inet.0: 3/3/3/0
L3VPN-1251.inet.0: 3/3/3/0
L3VPN-1252.inet.0: 3/3/3/0
L3VPN-1253.inet.0: 3/3/3/0
L3VPN-1254.inet.0: 3/3/3/0
L3VPN-1255.inet.0: 3/3/3/0
L3VPN-1256.inet.0: 3/3/3/0
L3VPN-1257.inet.0: 3/3/3/0
L3VPN-1258.inet.0: 3/3/3/0
L3VPN-1259.inet.0: 3/3/3/0
L3VPN-1260.inet.0: 3/3/3/0
L3VPN-1261.inet.0: 3/3/3/0
L3VPN-1262.inet.0: 3/3/3/0
L3VPN-1263.inet.0: 3/3/3/0
L3VPN-1264.inet.0: 3/3/3/0
L3VPN-1265.inet.0: 3/3/3/0
L3VPN-1266.inet.0: 3/3/3/0
L3VPN-1267.inet.0: 3/3/3/0
L3VPN-1268.inet.0: 3/3/3/0
L3VPN-1269.inet.0: 3/3/3/0
L3VPN-1270.inet.0: 3/3/3/0
L3VPN-1271.inet.0: 3/3/3/0
L3VPN-1272.inet.0: 3/3/3/0
L3VPN-1273.inet.0: 3/3/3/0
L3VPN-1274.inet.0: 3/3/3/0
L3VPN-1275.inet.0: 3/3/3/0
L3VPN-1276.inet.0: 3/3/3/0
L3VPN-1277.inet.0: 3/3/3/0
L3VPN-1278.inet.0: 3/3/3/0
L3VPN-1279.inet.0: 3/3/3/0
L3VPN-1280.inet.0: 3/3/3/0
L3VPN-1281.inet.0: 3/3/3/0
L3VPN-1282.inet.0: 3/3/3/0
L3VPN-1283.inet.0: 3/3/3/0
L3VPN-1284.inet.0: 3/3/3/0
L3VPN-1285.inet.0: 3/3/3/0
L3VPN-1286.inet.0: 3/3/3/0
L3VPN-1287.inet.0: 3/3/3/0
L3VPN-1288.inet.0: 3/3/3/0
L3VPN-1289.inet.0: 3/3/3/0
L3VPN-1290.inet.0: 3/3/3/0
L3VPN-1291.inet.0: 3/3/3/0
L3VPN-1292.inet.0: 3/3/3/0
L3VPN-1293.inet.0: 3/3/3/0
L3VPN-1294.inet.0: 3/3/3/0
L3VPN-1295.inet.0: 3/3/3/0
L3VPN-1296.inet.0: 3/3/3/0
L3VPN-1297.inet.0: 3/3/3/0
L3VPN-1298.inet.0: 3/3/3/0
L3VPN-1299.inet.0: 3/3/3/0
L3VPN-1300.inet.0: 3/3/3/0
L3VPN-1301.inet.0: 3/3/3/0
L3VPN-1302.inet.0: 3/3/3/0
L3VPN-1303.inet.0: 3/3/3/0
L3VPN-1304.inet.0: 3/3/3/0
L3VPN-1305.inet.0: 3/3/3/0
L3VPN-1306.inet.0: 3/3/3/0
L3VPN-1307.inet.0: 3/3/3/0
L3VPN-1308.inet.0: 3/3/3/0
L3VPN-1309.inet.0: 3/3/3/0
L3VPN-1310.inet.0: 3/3/3/0
L3VPN-1311.inet.0: 3/3/3/0
L3VPN-1312.inet.0: 3/3/3/0
L3VPN-1313.inet.0: 3/3/3/0
L3VPN-1314.inet.0: 3/3/3/0
L3VPN-1315.inet.0: 3/3/3/0
L3VPN-1316.inet.0: 3/3/3/0
L3VPN-1317.inet.0: 3/3/3/0
L3VPN-1318.inet.0: 3/3/3/0
L3VPN-1319.inet.0: 3/3/3/0
L3VPN-1320.inet.0: 3/3/3/0
L3VPN-1321.inet.0: 3/3/3/0
L3VPN-1322.inet.0: 3/3/3/0
L3VPN-1323.inet.0: 3/3/3/0
L3VPN-1324.inet.0: 3/3/3/0
L3VPN-1325.inet.0: 3/3/3/0
L3VPN-1326.inet.0: 3/3/3/0
L3VPN-1327.inet.0: 3/3/3/0
L3VPN-1328.inet.0: 3/3/3/0
L3VPN-1329.inet.0: 3/3/3/0
L3VPN-1330.inet.0: 3/3/3/0
L3VPN-1331.inet.0: 3/3/3/0
L3VPN-1332.inet.0: 3/3/3/0
L3VPN-1333.inet.0: 3/3/3/0
L3VPN-1334.inet.0: 3/3/3/0
L3VPN-1335.inet.0: 3/3/3/0
L3VPN-1336.inet.0: 3/3/3/0
L3VPN-1337.inet.0: 3/3/3/0
L3VPN-1338.inet.0: 3/3/3/0
L3VPN-1339.inet.0: 3/3/3/0
L3VPN-1340.inet.0: 3/3/3/0
L3VPN-1341.inet.0: 3/3/3/0
L3VPN-1342.inet.0: 3/3/3/0
L3VPN-1343.inet.0: 3/3/3/0
L3VPN-1344.inet.0: 3/3/3/0
L3VPN-1345.inet.0: 3/3/3/0
L3VPN-1346.inet.0: 3/3/3/0
L3VPN-1347.inet.0: 3/3/3/0
L3VPN-1348.inet.0: 3/3/3/0
L3VPN-1349.inet.0: 3/3/3/0
L3VPN-1350.inet.0: 3/3/3/0
L3VPN-1351.inet.0: 3/3/3/0
L3VPN-1352.inet.0: 3/3/3/0
L3VPN-1353.inet.0: 3/3/3/0
L3VPN-1354.inet.0: 3/3/3/0
L3VPN-1355.inet.0: 3/3/3/0
L3VPN-1356.inet.0: 3/3/3/0
L3VPN-1357.inet.0: 3/3/3/0
L3VPN-1358.inet.0: 3/3/3/0
L3VPN-1359.inet.0: 3/3/3/0
L3VPN-1360.inet.0: 3/3/3/0
L3VPN-1361.inet.0: 3/3/3/0
L3VPN-1362.inet.0: 3/3/3/0
L3VPN-1363.inet.0: 3/3/3/0
L3VPN-1364.inet.0: 3/3/3/0
L3VPN-1365.inet.0: 3/3/3/0
L3VPN-1366.inet.0: 3/3/3/0
L3VPN-1367.inet.0: 3/3/3/0
L3VPN-1368.inet.0: 3/3/3/0
L3VPN-1369.inet.0: 3/3/3/0
L3VPN-1370.inet.0: 3/3/3/0
L3VPN-1371.inet.0: 3/3/3/0
L3VPN-1372.inet.0: 3/3/3/0
L3VPN-1373.inet.0: 3/3/3/0
L3VPN-1374.inet.0: 3/3/3/0
L3VPN-1375.inet.0: 3/3/3/0
L3VPN-1376.inet.0: 3/3/3/0
L3VPN-1377.inet.0: 3/3/3/0
L3VPN-1378.inet.0: 3/3/3/0
L3VPN-1379.inet.0: 3/3/3/0
L3VPN-1380.inet.0: 3/3/3/0
L3VPN-1381.inet.0: 3/3/3/0
L3VPN-1382.inet.0: 3/3/3/0
L3VPN-1383.inet.0: 3/3/3/0
L3VPN-1384.inet.0: 3/3/3/0
L3VPN-1385.inet.0: 3/3/3/0
L3VPN-1386.inet.0: 3/3/3/0
L3VPN-1387.inet.0: 3/3/3/0
L3VPN-1388.inet.0: 3/3/3/0
L3VPN-1389.inet.0: 3/3/3/0
L3VPN-1390.inet.0: 3/3/3/0
L3VPN-1391.inet.0: 3/3/3/0
L3VPN-1392.inet.0: 3/3/3/0
L3VPN-1393.inet.0: 3/3/3/0
L3VPN-1394.inet.0: 3/3/3/0
L3VPN-1395.inet.0: 3/3/3/0
L3VPN-1396.inet.0: 3/3/3/0
L3VPN-1397.inet.0: 3/3/3/0
L3VPN-1398.inet.0: 3/3/3/0
L3VPN-1399.inet.0: 3/3/3/0
L3VPN-1400.inet.0: 3/3/3/0
L3VPN-1401.inet.0: 3/3/3/0
L3VPN-1402.inet.0: 3/3/3/0
L3VPN-1403.inet.0: 3/3/3/0
L3VPN-1404.inet.0: 3/3/3/0
L3VPN-1405.inet.0: 3/3/3/0
L3VPN-1406.inet.0: 3/3/3/0
L3VPN-1407.inet.0: 3/3/3/0
L3VPN-1408.inet.0: 3/3/3/0
L3VPN-1409.inet.0: 3/3/3/0
L3VPN-1410.inet.0: 3/3/3/0
L3VPN-1411.inet.0: 3/3/3/0
L3VPN-1412.inet.0: 3/3/3/0
L3VPN-1413.inet.0: 3/3/3/0
L3VPN-1414.inet.0: 3/3/3/0
L3VPN-1415.inet.0: 3/3/3/0
L3VPN-1416.inet.0: 3/3/3/0
L3VPN-1417.inet.0: 3/3/3/0
L3VPN-1418.inet.0: 3/3/3/0
L3VPN-1419.inet.0: 3/3/3/0
L3VPN-1420.inet.0: 3/3/3/0
L3VPN-1421.inet.0: 3/3/3/0
L3VPN-1422.inet.0: 3/3/3/0
L3VPN-1423.inet.0: 3/3/3/0
L3VPN-1424.inet.0: 3/3/3/0
L3VPN-1425.inet.0: 3/3/3/0
L3VPN-1426.inet.0: 3/3/3/0
L3VPN-1427.inet.0: 3/3/3/0
L3VPN-1428.inet.0: 3/3/3/0
L3VPN-1429.inet.0: 3/3/3/0
L3VPN-1430.inet.0: 3/3/3/0
L3VPN-1431.inet.0: 3/3/3/0
L3VPN-1432.inet.0: 3/3/3/0
L3VPN-1433.inet.0: 3/3/3/0
L3VPN-1434.inet.0: 3/3/3/0
L3VPN-1435.inet.0: 3/3/3/0
L3VPN-1436.inet.0: 3/3/3/0
L3VPN-1437.inet.0: 3/3/3/0
L3VPN-1438.inet.0: 3/3/3/0
L3VPN-1439.inet.0: 3/3/3/0
L3VPN-1440.inet.0: 3/3/3/0
L3VPN-1441.inet.0: 3/3/3/0
L3VPN-1442.inet.0: 3/3/3/0
L3VPN-1443.inet.0: 3/3/3/0
L3VPN-1444.inet.0: 3/3/3/0
L3VPN-1445.inet.0: 3/3/3/0
L3VPN-1446.inet.0: 3/3/3/0
L3VPN-1447.inet.0: 3/3/3/0
L3VPN-1448.inet.0: 3/3/3/0
L3VPN-1449.inet.0: 3/3/3/0
L3VPN-1450.inet.0: 3/3/3/0
L3VPN-1451.inet.0: 3/3/3/0
L3VPN-1452.inet.0: 3/3/3/0
L3VPN-1453.inet.0: 3/3/3/0
L3VPN-1454.inet.0: 3/3/3/0
L3VPN-1455.inet.0: 3/3/3/0
L3VPN-1456.inet.0: 3/3/3/0
L3VPN-1457.inet.0: 3/3/3/0
L3VPN-1458.inet.0: 3/3/3/0
L3VPN-1459.inet.0: 3/3/3/0
L3VPN-1460.inet.0: 3/3/3/0
L3VPN-1461.inet.0: 3/3/3/0
L3VPN-1462.inet.0: 3/3/3/0
L3VPN-1463.inet.0: 3/3/3/0
L3VPN-1464.inet.0: 3/3/3/0
L3VPN-1465.inet.0: 3/3/3/0
L3VPN-1466.inet.0: 3/3/3/0
L3VPN-1467.inet.0: 3/3/3/0
L3VPN-1468.inet.0: 3/3/3/0
L3VPN-1469.inet.0: 3/3/3/0
L3VPN-1470.inet.0: 3/3/3/0
L3VPN-1471.inet.0: 3/3/3/0
L3VPN-1472.inet.0: 3/3/3/0
L3VPN-1473.inet.0: 3/3/3/0
L3VPN-1474.inet.0: 3/3/3/0
L3VPN-1475.inet.0: 3/3/3/0
L3VPN-1476.inet.0: 3/3/3/0
L3VPN-1477.inet.0: 3/3/3/0
L3VPN-1478.inet.0: 3/3/3/0
L3VPN-1479.inet.0: 3/3/3/0
L3VPN-1480.inet.0: 3/3/3/0
L3VPN-1481.inet.0: 3/3/3/0
L3VPN-1482.inet.0: 3/3/3/0
L3VPN-1483.inet.0: 3/3/3/0
L3VPN-1484.inet.0: 3/3/3/0
L3VPN-1485.inet.0: 3/3/3/0
L3VPN-1486.inet.0: 3/3/3/0
L3VPN-1487.inet.0: 3/3/3/0
L3VPN-1488.inet.0: 3/3/3/0
L3VPN-1489.inet.0: 3/3/3/0
L3VPN-1490.inet.0: 3/3/3/0
L3VPN-1491.inet.0: 3/3/3/0
L3VPN-1492.inet.0: 3/3/3/0
L3VPN-1493.inet.0: 3/3/3/0
L3VPN-1494.inet.0: 3/3/3/0
L3VPN-1495.inet.0: 3/3/3/0
L3VPN-1496.inet.0: 3/3/3/0
L3VPN-1497.inet.0: 3/3/3/0
L3VPN-1498.inet.0: 3/3/3/0
L3VPN-1499.inet.0: 3/3/3/0
Download the files by clicking the buttons below :
